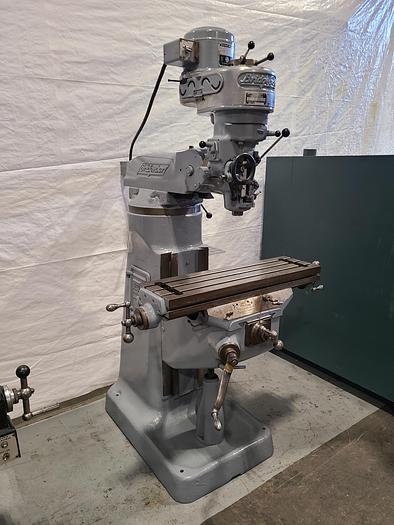

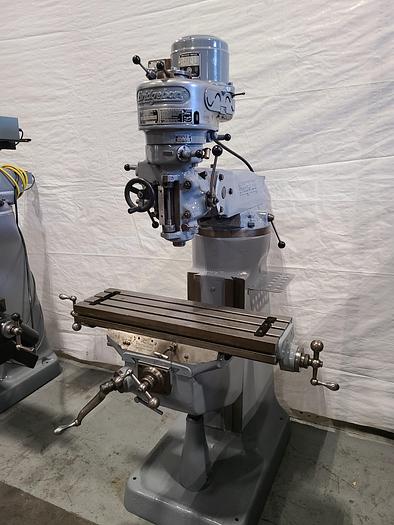

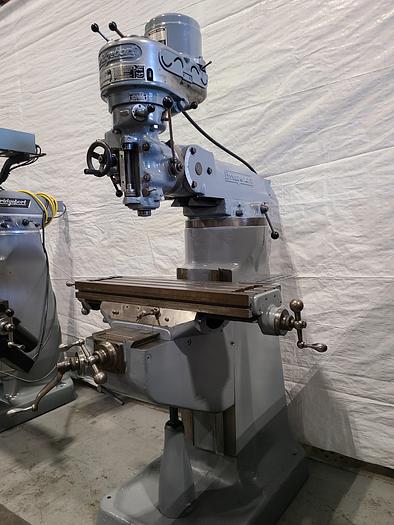

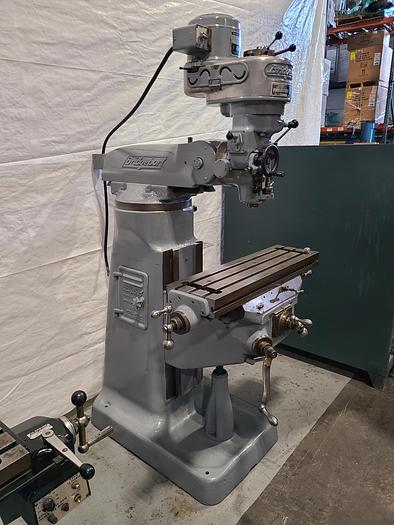

Bridgeport 1HP Milling Machine with 32" Table Mill Miller

This is a Bridgeport 1HP Variable Speed Milling Machine with 32" Table in pristine running condition!

We can turn this machine into single phase for $350

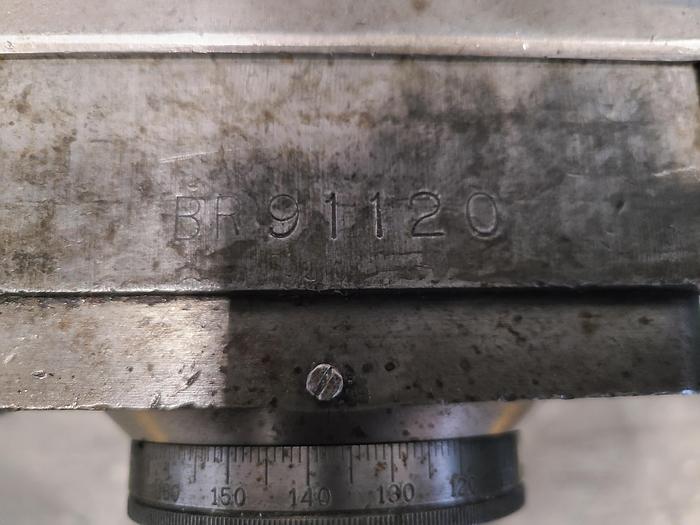

Serial # BR 91120

Bridgeport Milling Machine with Accessory Package as Shown:

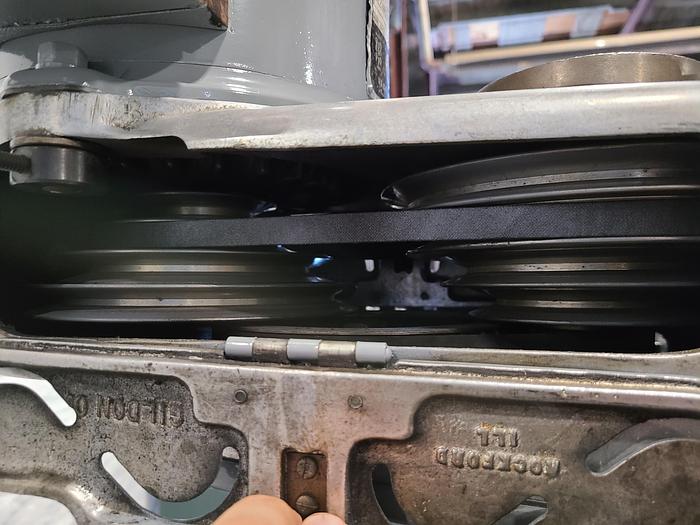

• Step Pulley Speed Control

SPECIFICATIONS

Range:

• Table Travel (X-Axis) 20 in.
• Saddle Travel (Y-Axis) 12 in.
• Quill Travel 5 in.
• Knee Travel (Z-Axis)* 16 in.
• Ram Travel 12 in.
• Throat Distance (min.) 6.75 in.
• Throat Distance (max.) 18.75 in.
• Table to Spindle Nose Gage Line:
• - (min.) 2.5 in.
• - (max.) 18.25 in.

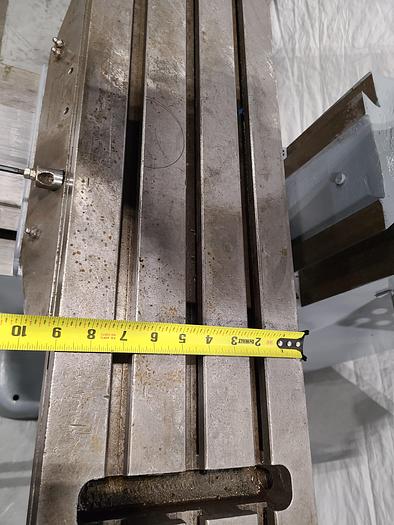

Table:

• Overall Size 492 x 9 in. (1245 x 299 mm)
• Working Surface 32 x 9 in. (1245 x 229 mm)
• T-slots Centers 3 @ 2.5 in. (64 mm)
• T-slot Size 0.625 in. (16 mm)
• Height above Floor (max.) 47.25 in. (1200 mm)
• Weight of Workpiece (max.) TBD

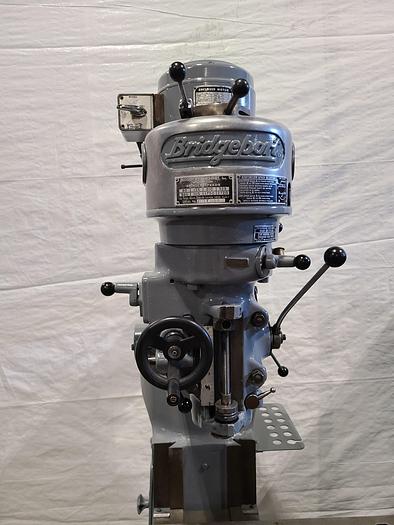

Spindle (2J Head):

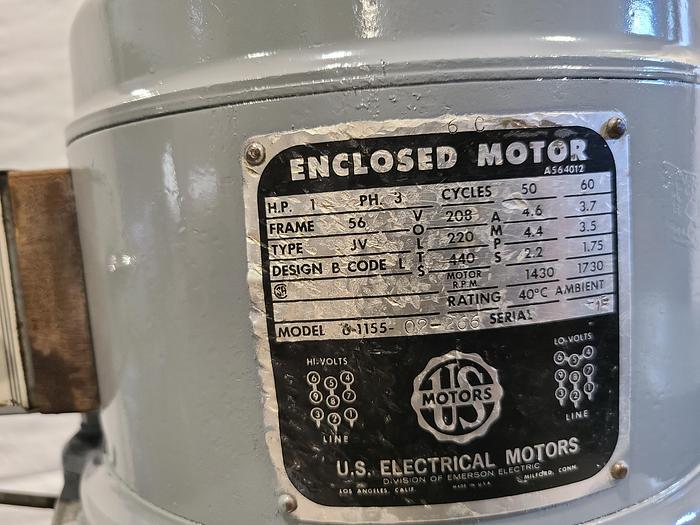

• AC Power Rating:
• - (continuous) 1 hp (1.2 kW)
• Spindle Taper R-8
• Tooling R-8 Collets

Speed Range:

• High (infinitely variable) 660 – 2720 rpm
• Low 80 – 325 rpm
• Power Quill Feed 0.0015 in./rev (0.038 mm)
• Manual Adjust:
• - 0.003 in./rev (0.076 mm)
• - 0.006 in./rev (0.152 mm)

Drilling Capacity:

• Power Quill Feed 3/4 in. (19 mm)
• Milling Capacity (mild steel) 3/4 in. (19 mm)
• Boring Range (mild steel) 6 in. dia. (152 mm)
• Spindle Diameter 1.875 in. (48 mm)
• Quill Diameter 3.375 in. (86 mm)

Positioning:

• Auto (X, Y) 100 ipm (2540 mm/min)
• Manual (X, Y) 100 ipm (2540 mm/min)
• Feedrate Range (X, Y) 0.1 – 35 ipm (2 – 889 mm/min)
• Minimum Increment 0.0001 in. (0.003 mm)

Space and Weight:

• Floor Area:
• - 8.3 x 5.3 ft. (2.53 x 1.62 m)
• - 8.3 x 7.8 ft. (2.53 x 2.4 m)**
• Height 7.04 ft. (2.15 m)
• Net Weight 1930 lb (875 kg)
• Shipping Weight 2075 lb (941 kg)

PTWS # LR-0000-091221-A

Pic# 06282021

* All information deemed accurate but may vary from model to model.

Contact Larry for any questions you may have.

Contact us at Four Zero One - Nine Six Five - Five Five Five Seven or Contact us through ebay

L R Associates, Inc.

Rhode Island, USA
