Ronci Paint Spin Coating Machine Lacquer Wax Enamel lubricants on metal wood plastic fiber

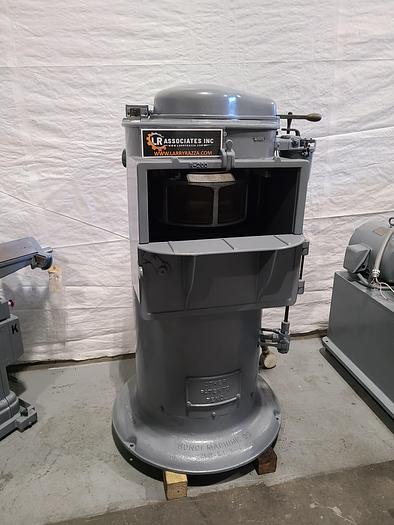

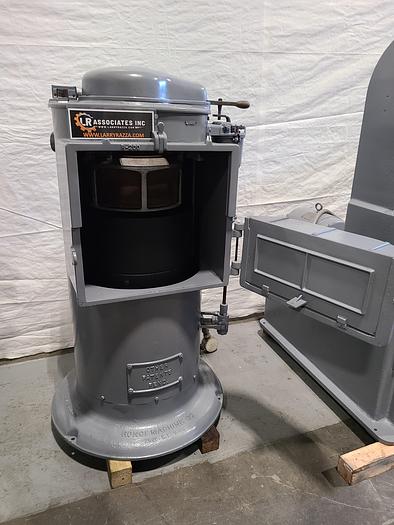

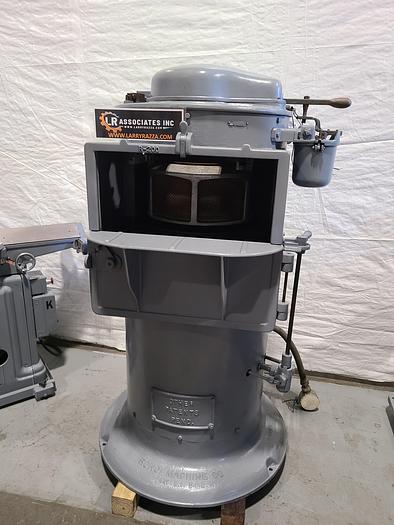

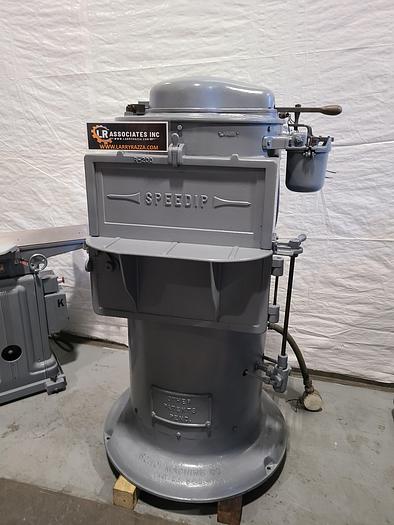

This is a Ronci Speedy Dip and Spin Lacquering Machine (Paint Coating Machine)... in excellent running condition!

The R-200V are the finest coating machines for lacquering and enameling small wood, metal, fibre and composition parts. Waxes, lubricants, adhesives, and more sophisticated coatings like Teflon, Emralon, and Nylon can be applied quickly and efficiently.

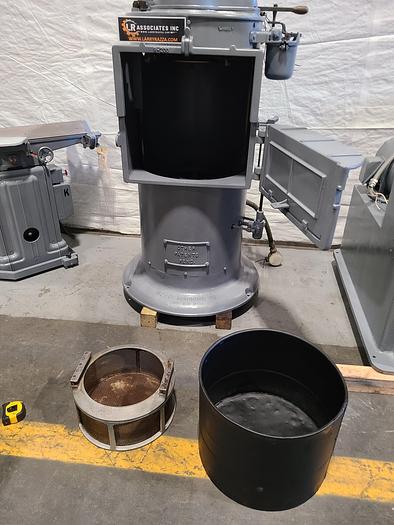

You simply put the parts in the screen basket. Bring the elevation lever up... which holds a 5 gallon pail of lacquer, the brass parts are submerged in the clear lacquer.... Then pushing the lever down, this will drop the pail of lacquer down and then the unit will spin the basket... the residual lacquer with drop back down into the pail and the parts will spin dry. Very efficient! The result is perfectly clear coated parts. This unit can also be used for spin drying the water off parts or applying lubricants, etc. This machine has been tested and works excellent... super heavy duty!

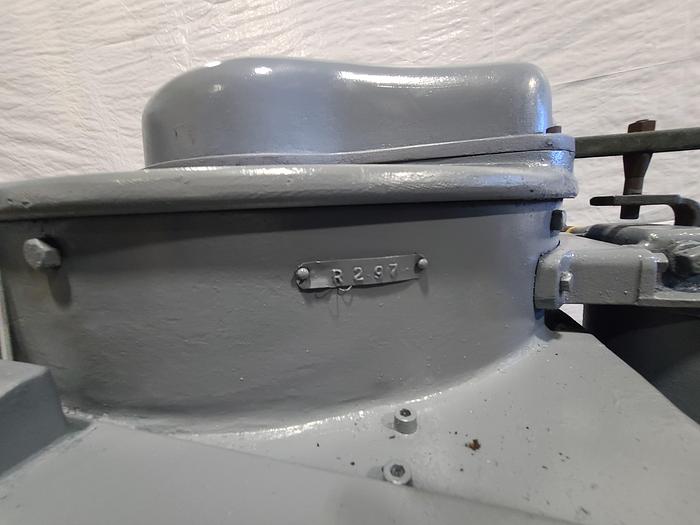

• Model # R297
• Two Dayton Motors: (one for hydraulics and the other for the spinning drive)
• 3 Phase
• 60 Hz
• 230 Volts
• 3.6 Amps

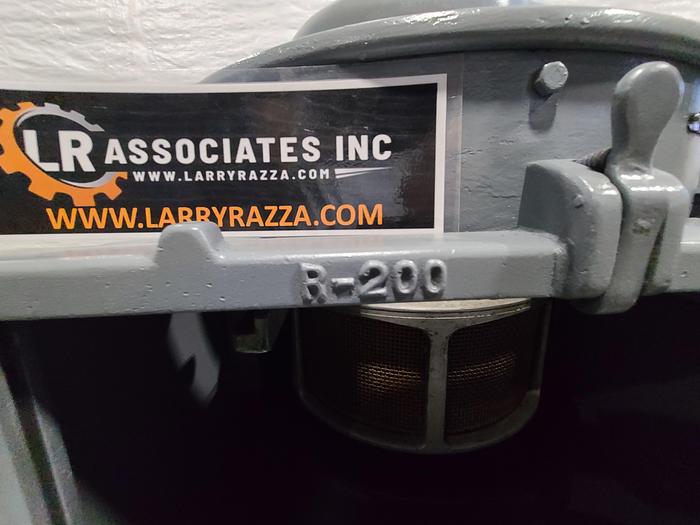

R-200V Specifications...

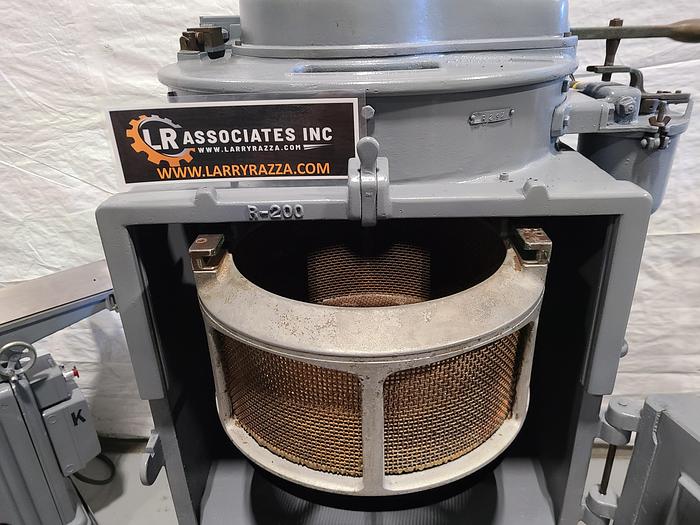

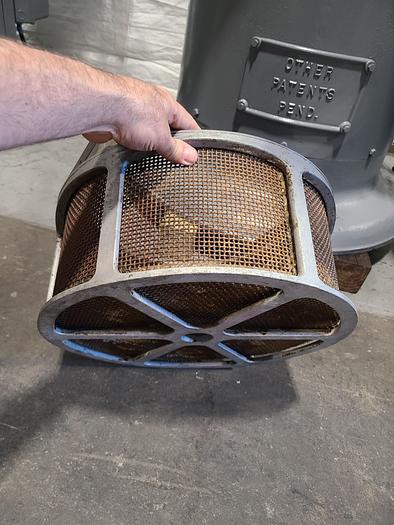

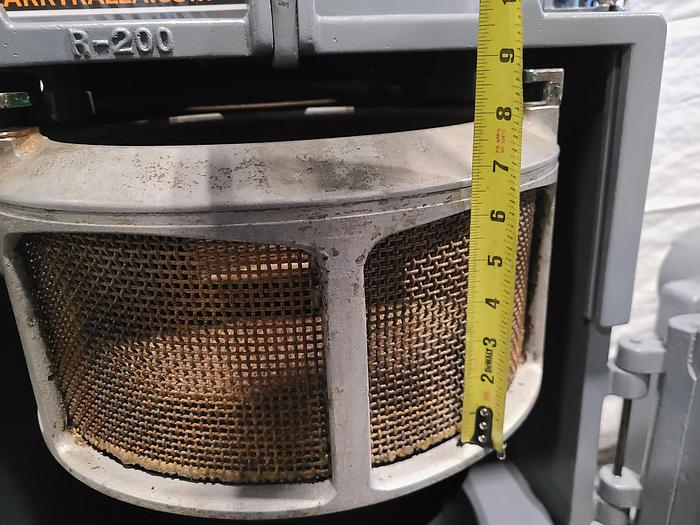

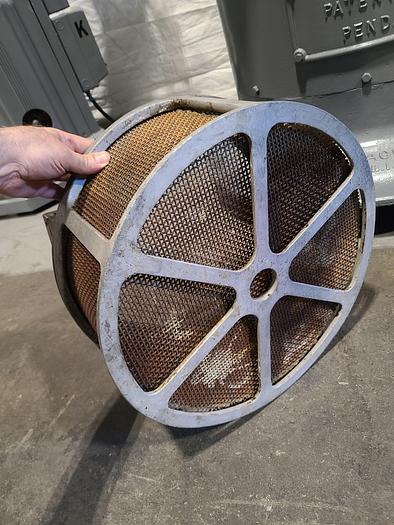

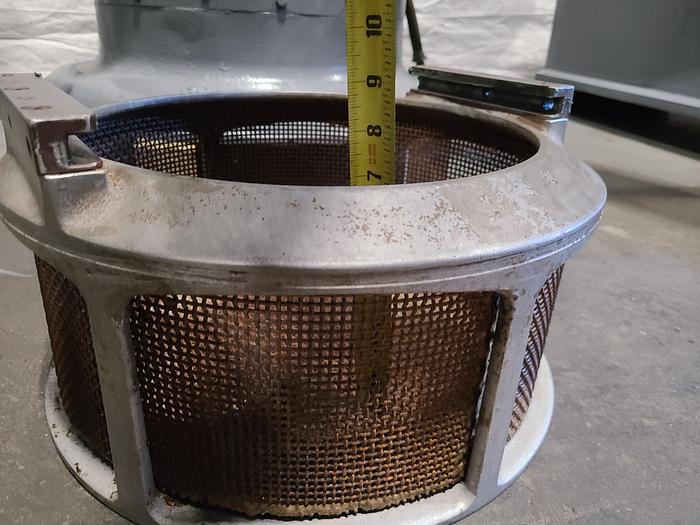

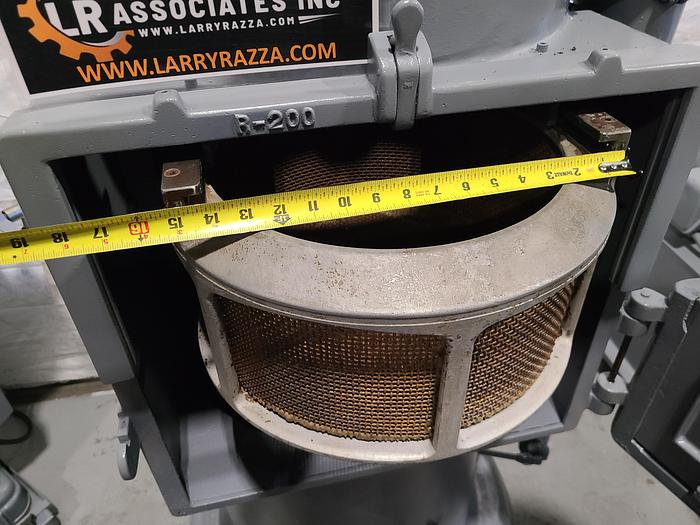

WORK BASKET

Specially alloyed cast aluminum lined with steel mesh wire 16" in diameter. Depth is 6". Capacity is 1206 cubic inches.

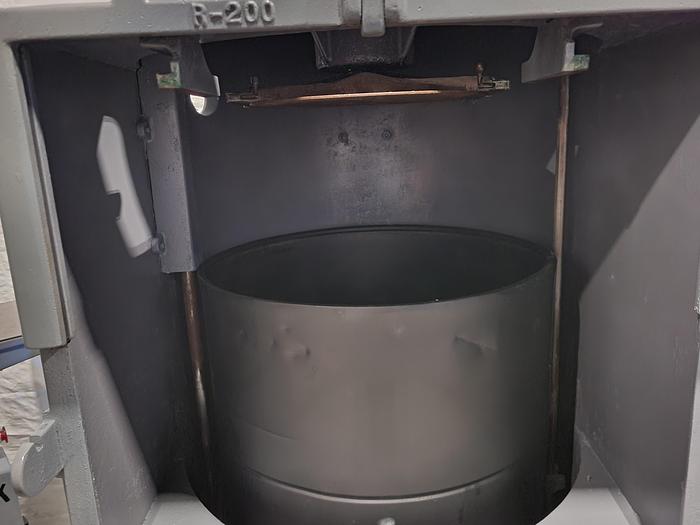

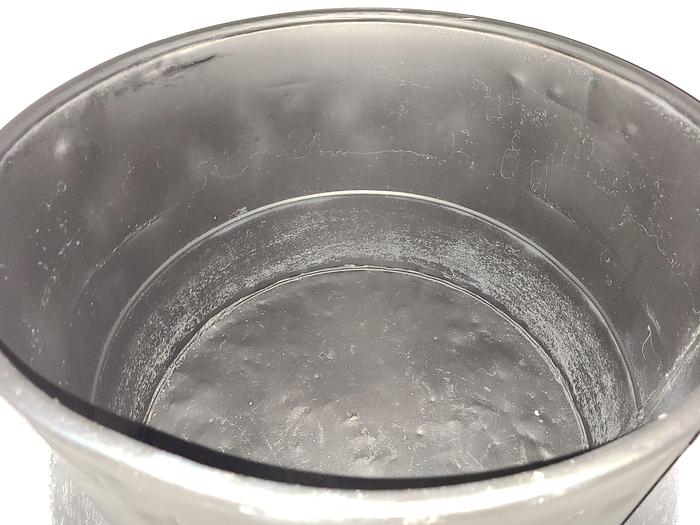

MATERIAL TANK

Heavy duty welded stainless steel tank with cover.

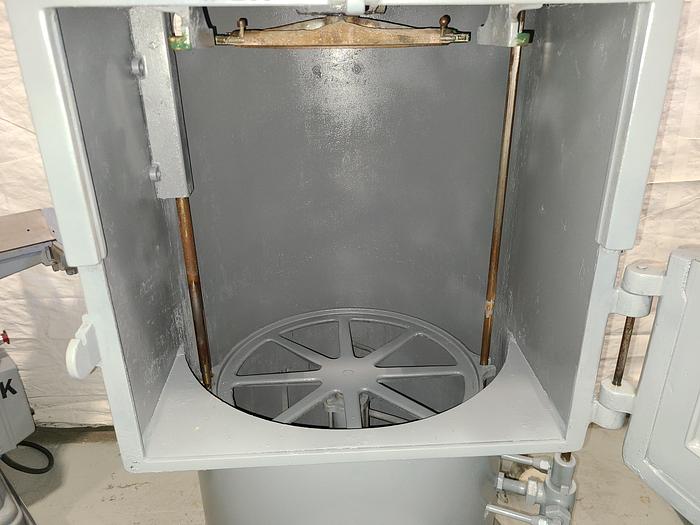

MECHANICAL DOOR

Manually operated sliding door.

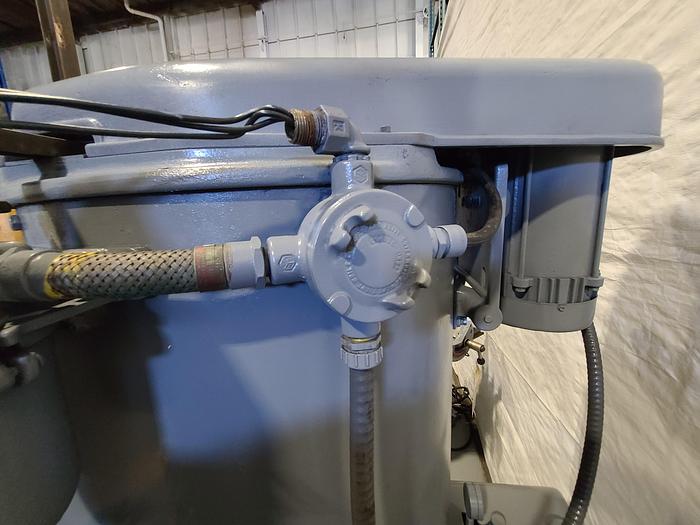

MOTOR EQUIPMENT

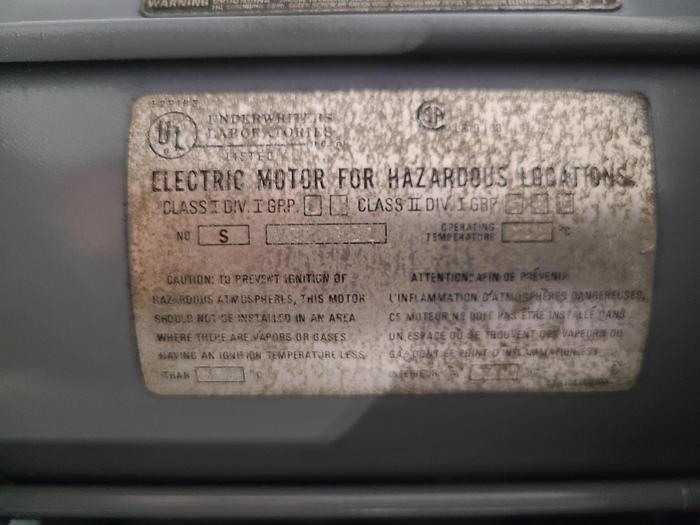

3/4 horsepower - explosive-proof spin motor.

Voltage 230/460.

8-speed spin motor control standard equipment. 8 increments from 100-600 RPM.

1/2 horsepower - explosive-proof motor for hydraulic lift.

Voltage 230/460.

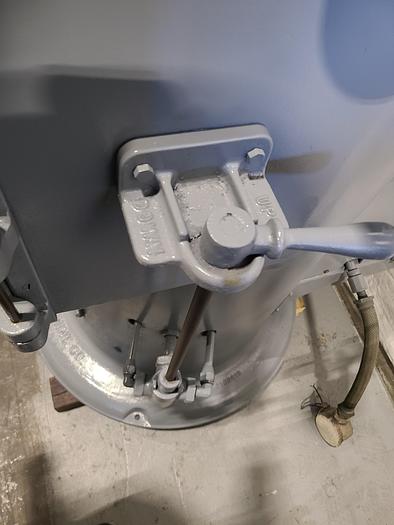

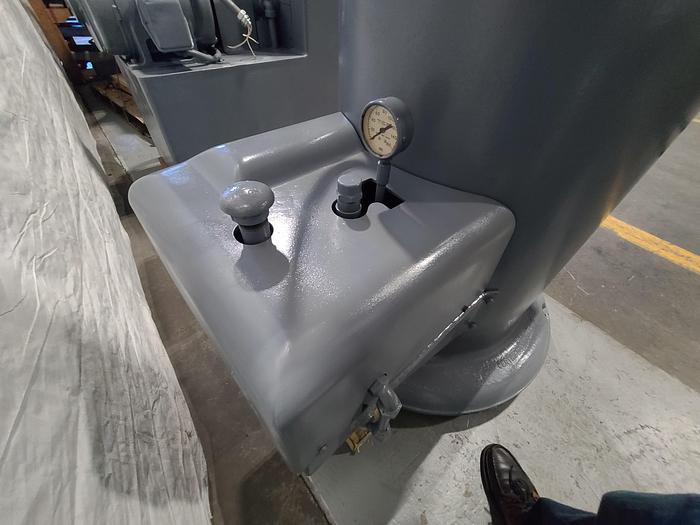

HYDRAULIC CONTROLS

For raising and lowering operations.

CAPACITY

Allowing time for loading and unloading - 20 to 25 complete operations per hour.

FLOOR SPACE

42 " X 36 " X 72 " high.

WEIGHT

875 lbs. Crated 1135 lbs.

PTWS # LR-000000-07242022-LR-29

Picture# 07072022

Bid with Confidence on this item, check our feedback!!!

* All information deemed accurate but may vary from model to model.

Contact Larry for any questions you may have...

Contact us at Four Zero One - Nine Six Five - Five Five Five Seven
