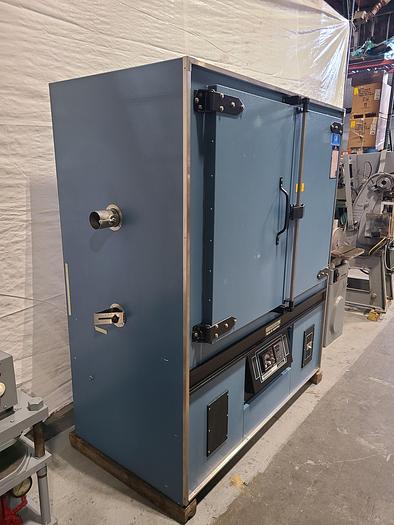

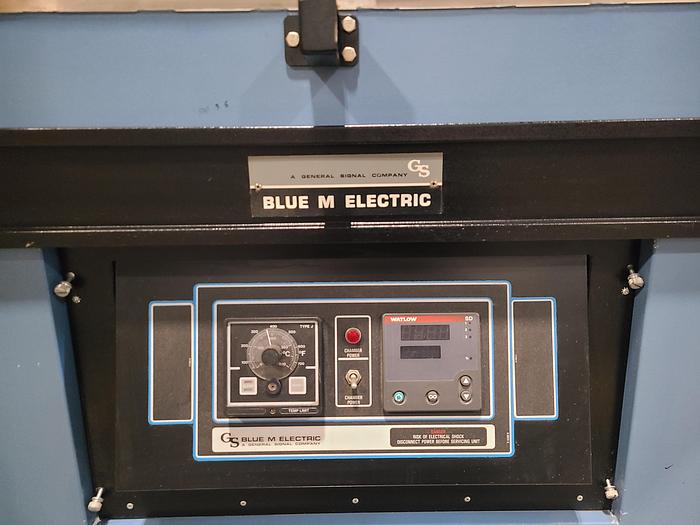

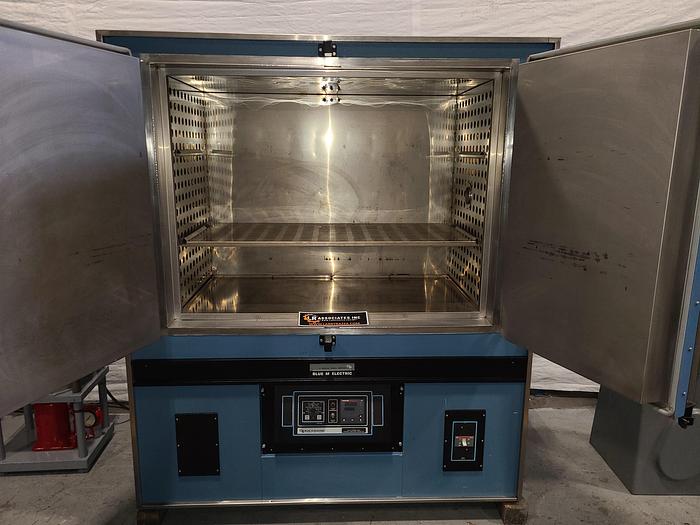

Blue M DC-1406-C-ST350 Mechanical Convection Ovens 660F Max Temp. 48" Lab Oven Watlow Control

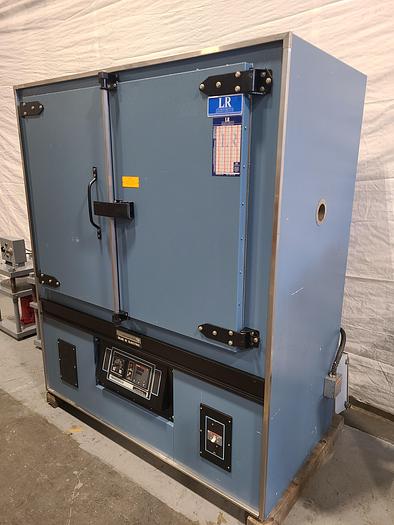

This is a Blue M DC-1406 Mechanical Convection Oven Stainless Steel ... Tested and running excellent!

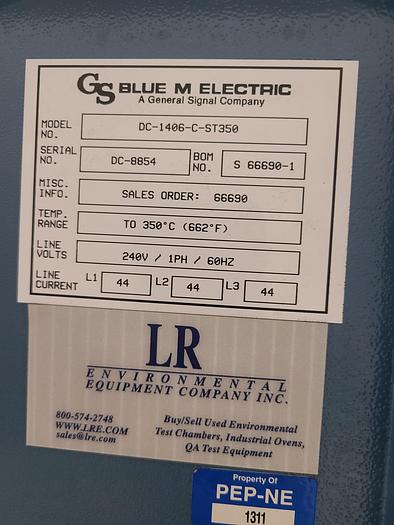

• Model # DC-1406-C-ST350
• Serial # DC-8854

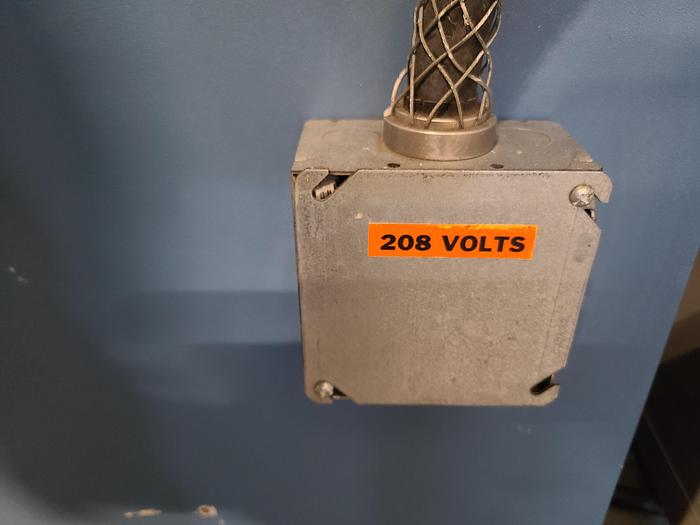

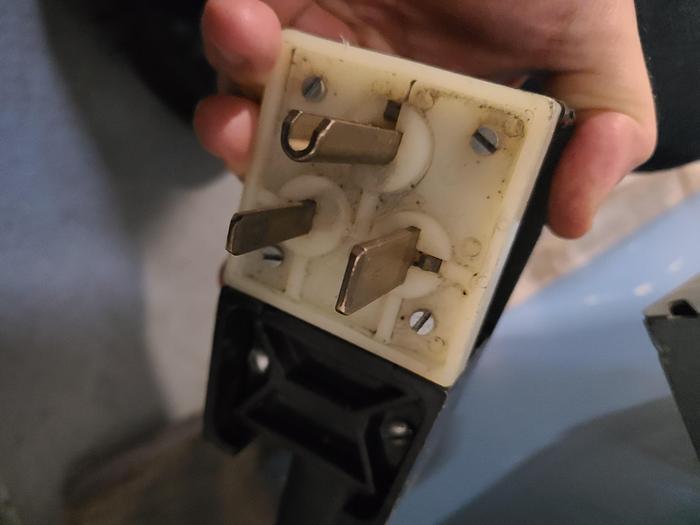

• 240 Volts (wired 208 volts)
• Single Phase
• 60 Hz
• Temp Range: to 350 degrees C ( 662 degrees F)

The Blue M DC-1406 Mechanical Convection Ovens are ideal for industrial oven applications that involve processing materials in a controlled atmosphere environment, as well as dry packaging of electronic components. Blue M DC-1406 industrial ovens perform ASTM testing, epoxy curing, moisture drying, UL testing, aging of electronic components and devices and more. The Blue M DC-1406 meets AST 5243 Type I and Type II oven specifications, achieving the frequent air changes and tight temperature uniformity mandated by AST 5423 standards. A high-volume fan creates a constant horizontal airflow across all sections of the oven, meeting ASTM 5423 Type I and II while tested according to ASTM 5374.

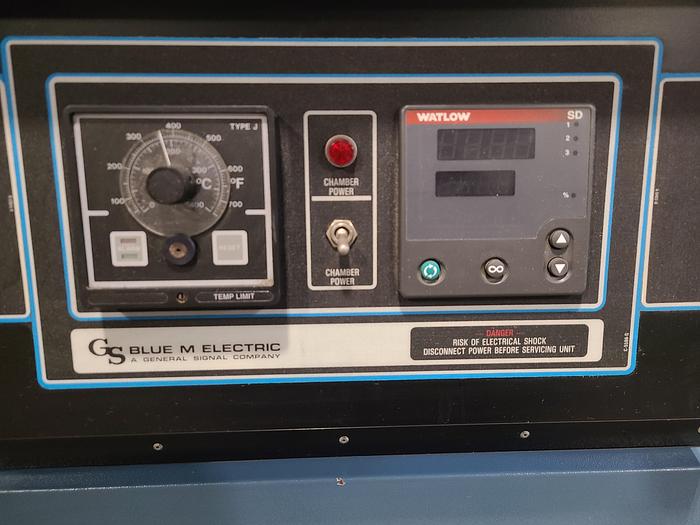

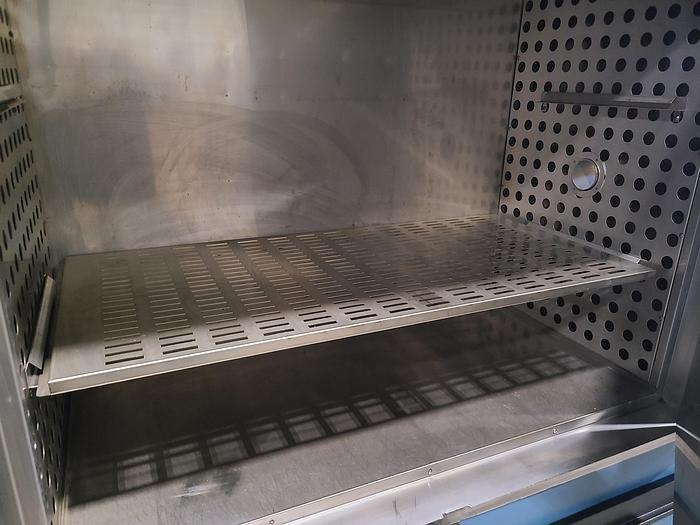

Uniform, Accurate and Reliable Temperature Control • Available with profiling or single setpoint temperature controls. • Horizontal air flow assures uniform thermal performance under all loading conditions. • Exclusive Blue M Eterna heating elements - the most reliable available, with heavy-gauge high-temperature nickel chromium wire, low-watt density for longer service life, standard air flow switch. • Direct drive blower multi-blade centrifugal blower with high-volume air delivery, dynamically balanced with variable frequency drive

General ASTM Testing Mechanical Convection Oven Specifications • Temperature range: 15°C above ambient to 350°C (662°F) • Uniformity: per E145 type 1A and 2A specifications • Control Accuracy: +0.5°C • Resolution: +/-0.1°C

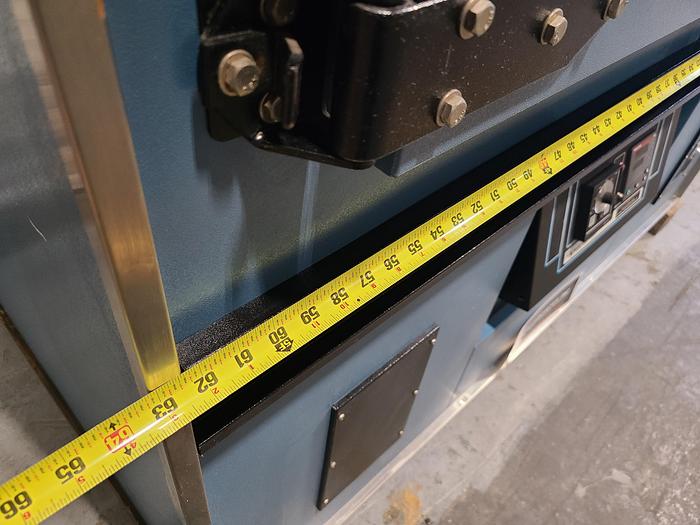

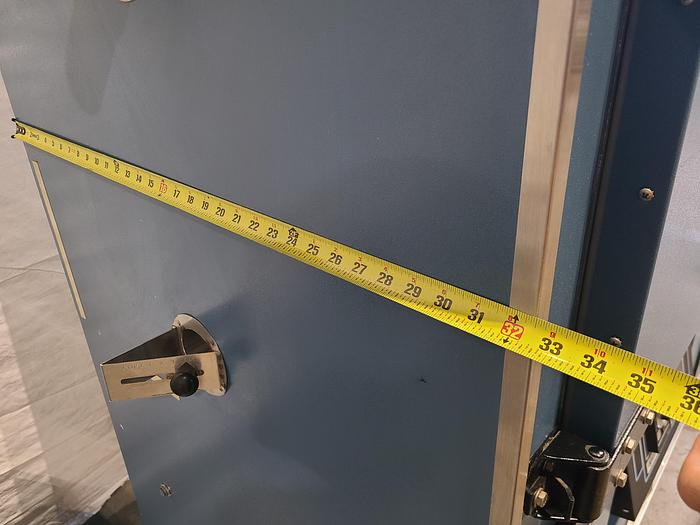

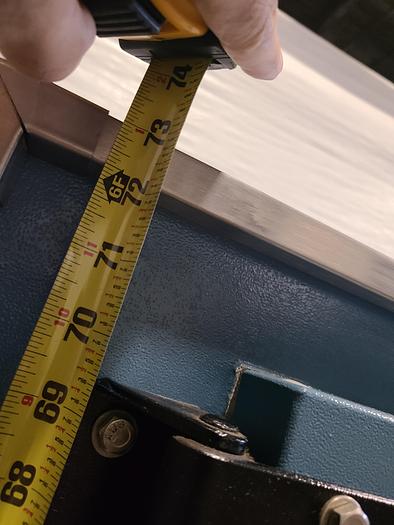

Exterior Dimensions (W x D x H)

68" x 40" x 82"

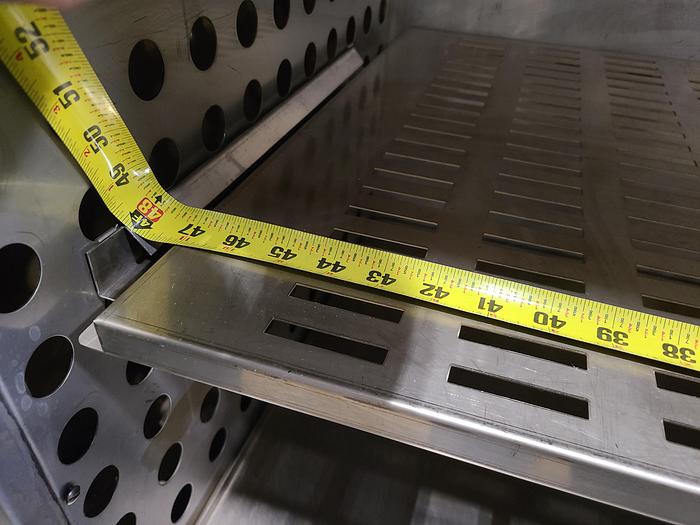

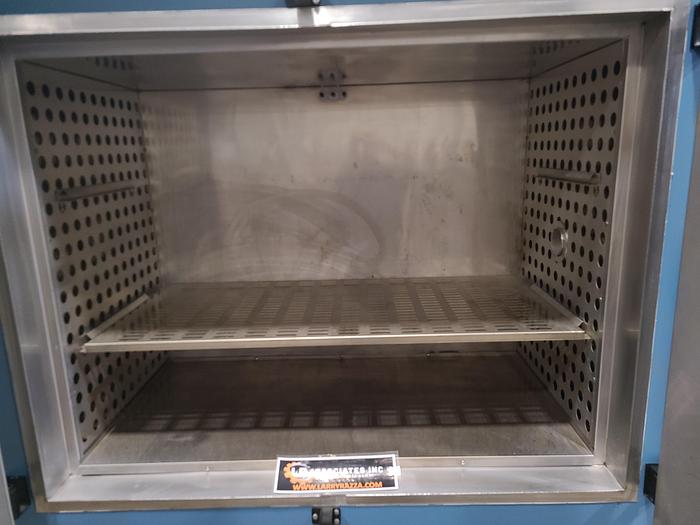

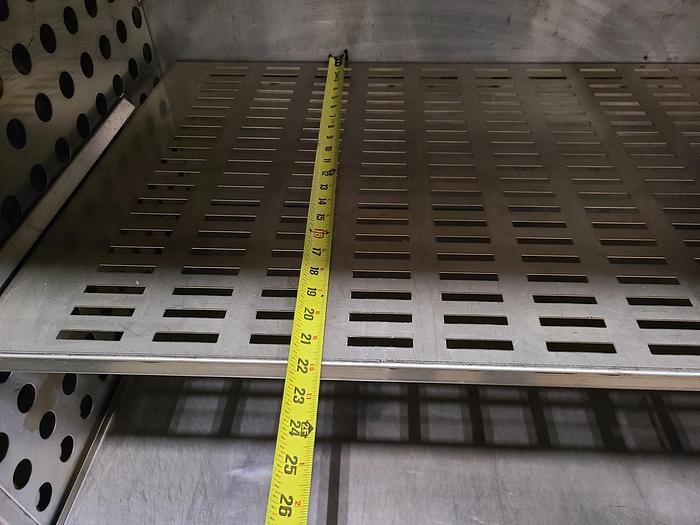

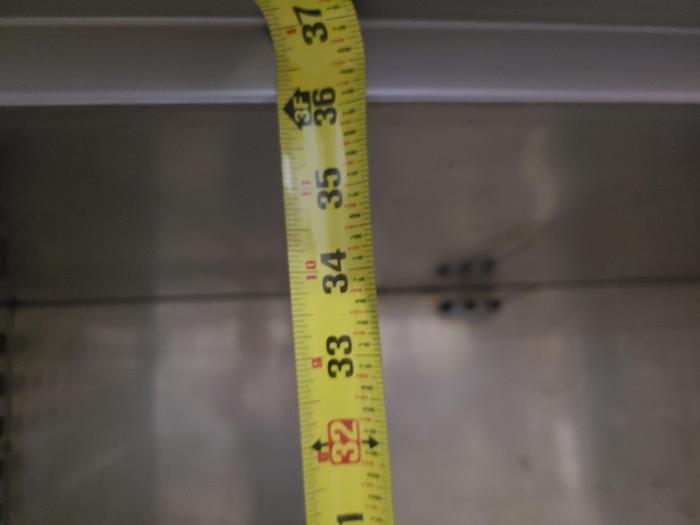

Interior Dimensions (W x D x H)

48" x 24" x 36"

PTWS # LR-000000-08142022-LR-62

Picture# 08022022

* All information deemed accurate but may vary from model to model.
