Hurco Milling Machine 3 HP Loaded!! Acu-Rite DRO 3 Axis Power Feeds E Stop Vari-Speed Head

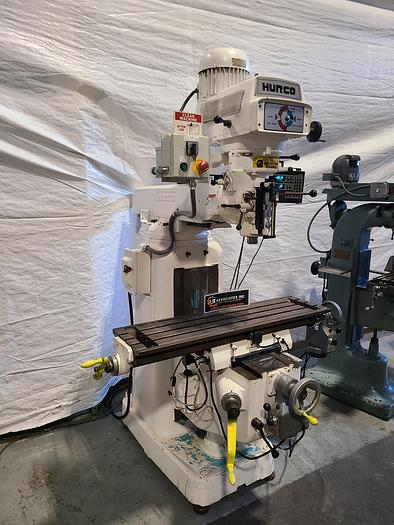

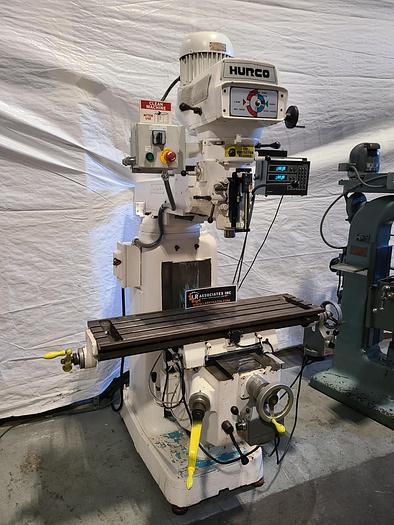

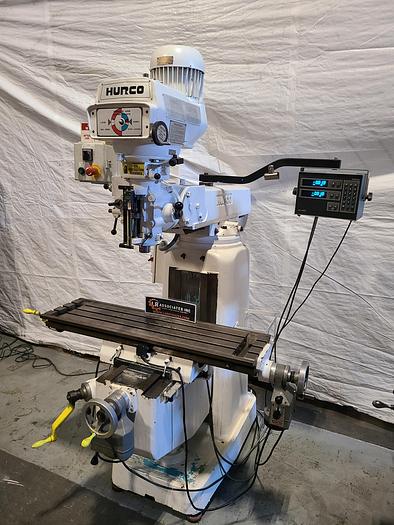

This is a Hurco Mercan 3HP Variable Speed Milling Machine Loaded with options!! ...tested and running excellent!

• Hurco Mill

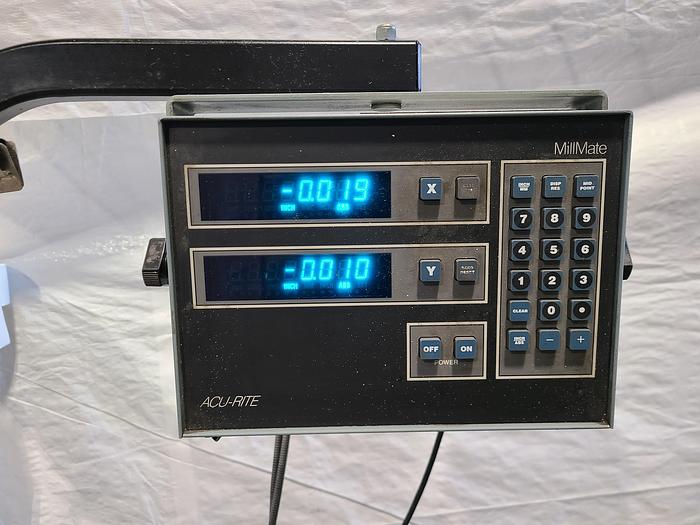

• Acu-Rite Digital Read Out on X&Y

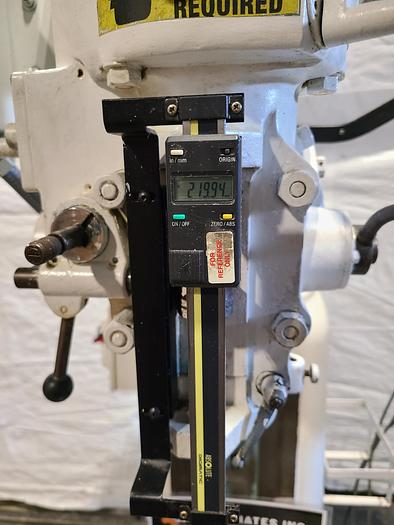

• Mitutoyo Digital Read Out on Z axis

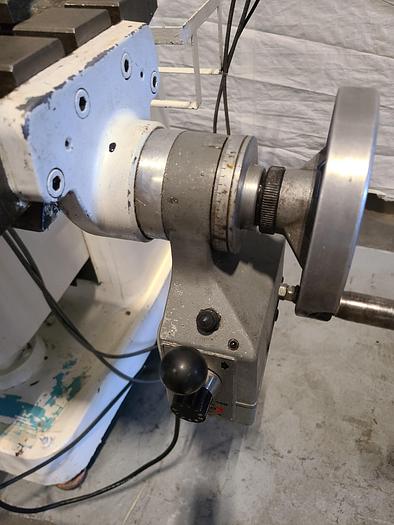

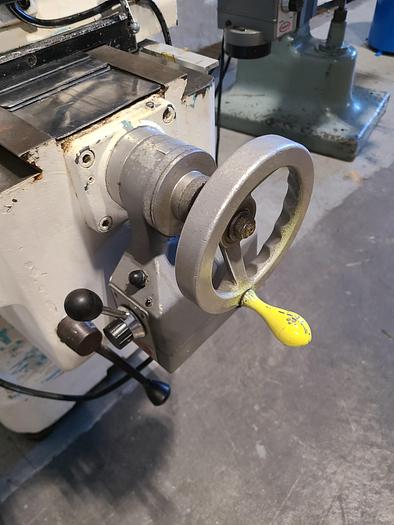

• X, Y and Z Power Feed

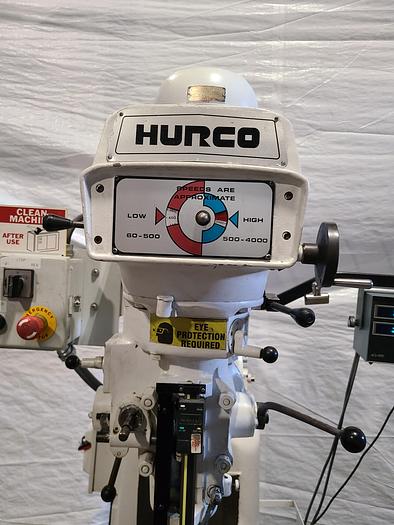

• Variable Speed Drive Head

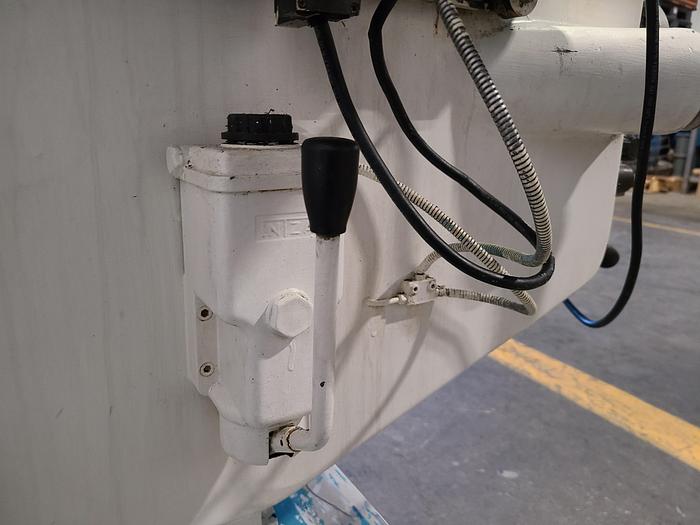

• Single Point Lubrication
• Emergency Stop Button

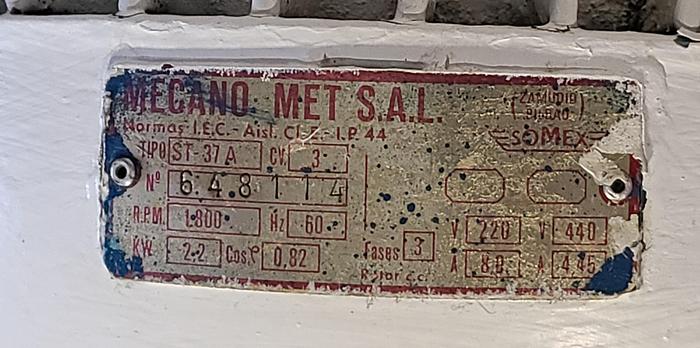

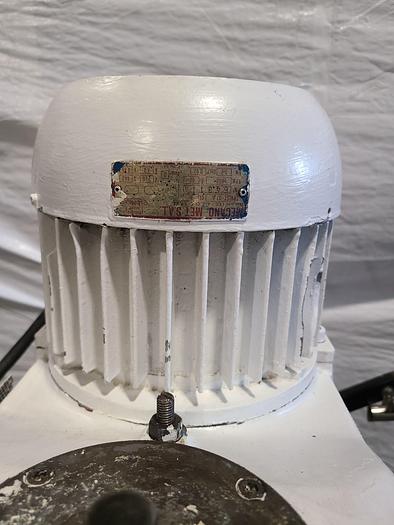

• 3 HP Motor
• 220/440 Volts... wired 220v
• 60 Hz
• 3 Phase
• 8.0/4.45 Amps

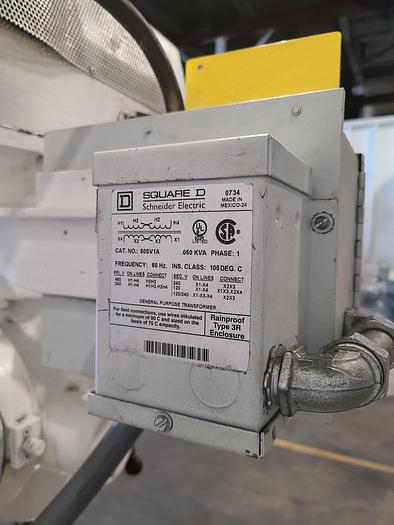

• 110v control panel with transformer

Specifications

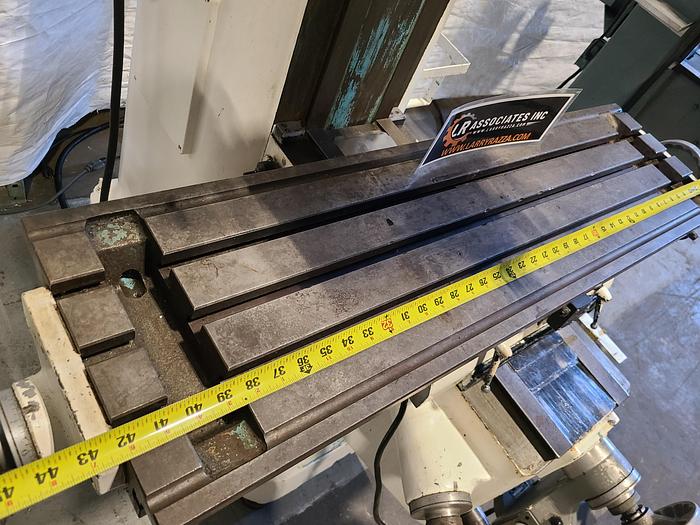

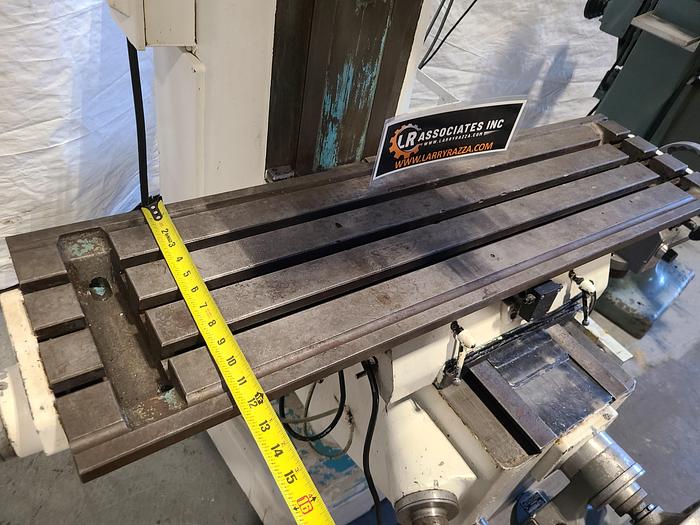

• Working Surface: 12" x 42"
• Longitudinal Travel: 34.4" with powerfeed (37.4" without powerfeed) (Powerfeed stops prevent overtravel.)
• Cross Travel: 16.5" (15.5" with readout installed)
• Vertical Travel: 16.5"
• Ram Travel: 18.5" with scale
• Head tilt, left to right: 90° left, 90° right with degree ring scale
• Head Tilt, front to back: 45° front, 45° back with degree ring scale
• Ram Circular Movement: 360° with degree ring scale
• T-Slots: 3 @ 2 1/2" centers, 5/8" Ea.
• Spindle Drive: 3 HP
• Spindle Range (Manual Vari-speed sheeve): 60-4200 Variable with Direct Drive and Back-geared
• Spindle Type: R-8
• Quill Travel & Diameter: 5" travel and 3 3/8" diameter
• Power quill feed range, Inches per rev: 0.0018", 0.003", 0.006"
• Weight of Work Piece, max: 660 lbs
• Spindle Motor: 3 HP, 208-240/440/460/480 volt | 3 ph spindle motor
• Electrics: 208-240/440/460/480V | 3 ph
• Machine, Net Weight: 3000 lbs

PTWS # LR-000000-08142022-LR-06

Picture# 08122022

* All information deemed accurate but may vary from model to model.
