Bridgeport 2 HP Milling Machine Digital Read Out Power Feed 6" Vise & Lube Mill Miller

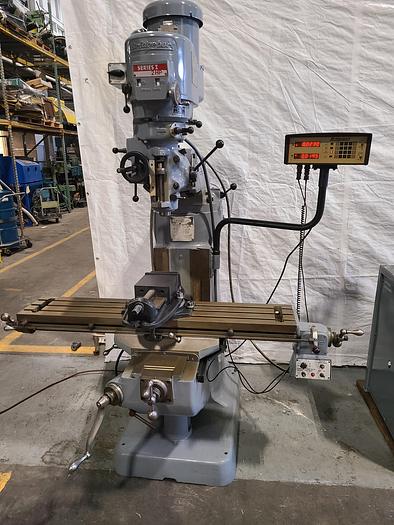

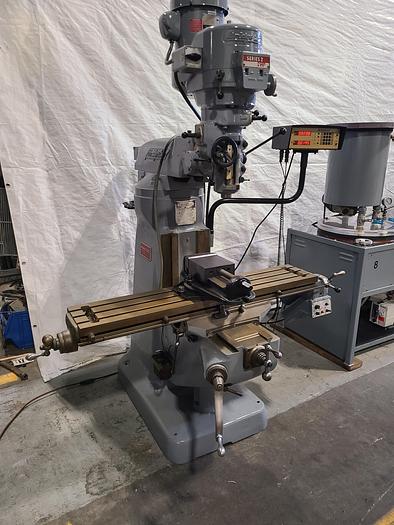

This is a Bridgeport 2HP Milling Machine Vari-Speed Head with Digital Read Out, Power Feed, 6" Vise & Single Point Lubrication in pristine running condition!

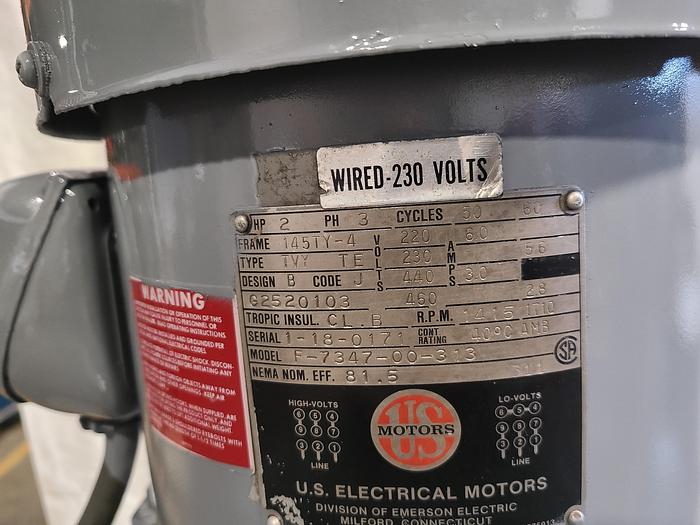

We can turn this machine into single phase for $350

Bridgeport 9" x 42" 2HP Milling Machine Package

• Bridgeport Milling Machine with Accessory Package as Shown:

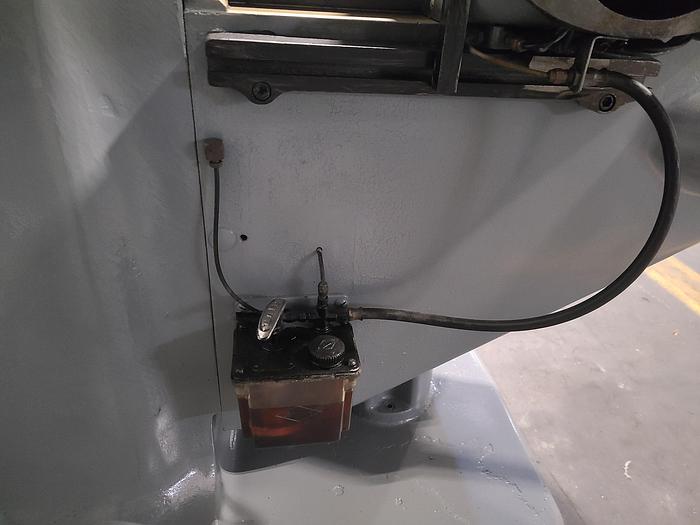

• Single Point Lubrication
• Variable Speed Head

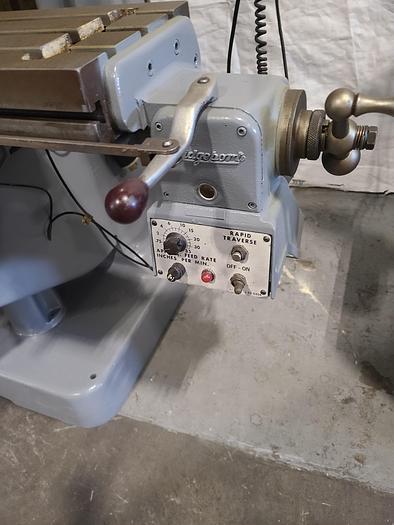

• Power Feed

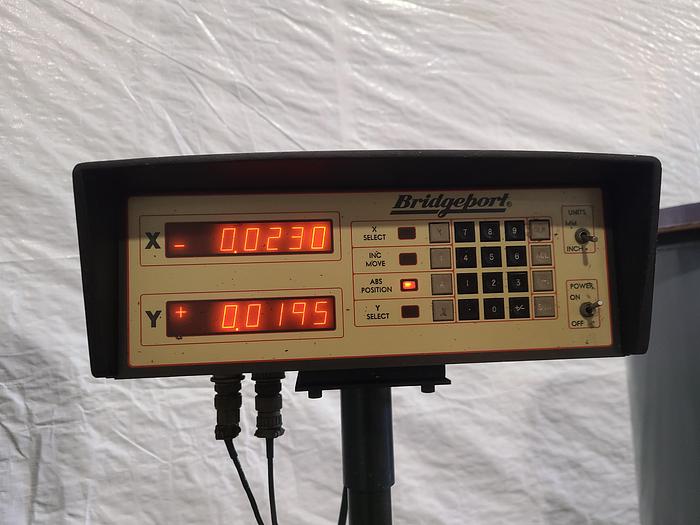

• DRO

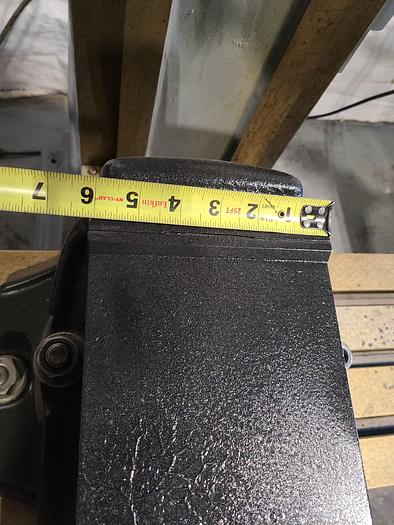

• 6" Vise

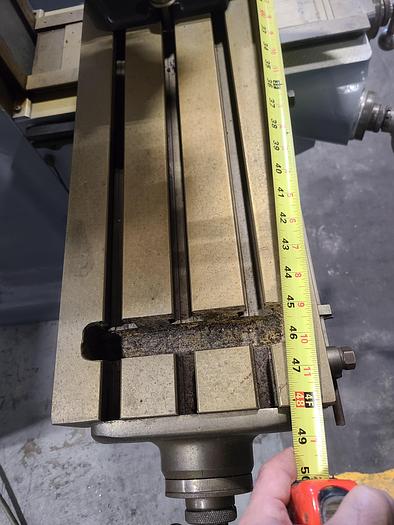

• 42" Table

SPECIFICATIONS

• Range:
• Table Travel (X-Axis) 30 in. (914 mm)
• Saddle Travel (Y-Axis) 12 in. (305 mm)
• Quill Travel 5 in. (127 mm)
• Knee Travel (Z-Axis)* 16 in. (406 mm)
• Ram Travel 12 in. (305 mm)
• Throat Distance (min.) 6.75 in. (171 mm)
• Throat Distance (max.) 18.75 in. (476 mm)
• Table to Spindle Nose Gage Line:
• - (min.) 2.5 in. (64 mm)
• - (max.) 18.25 in. (463 mm)
• Table:
• Overall Size 492 x 9 in. (1245 x 299 mm)

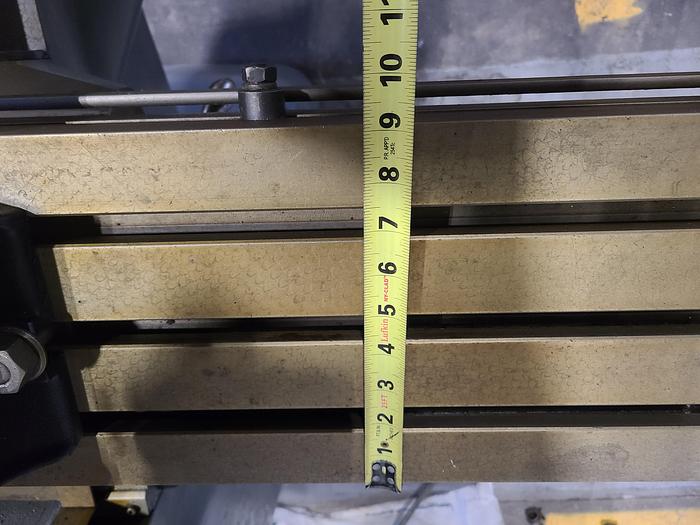

• Working Surface 42 x 9 in. (1245 x 229 mm)
• T-slots Centers 3 @ 2.5 in. (64 mm)
• T-slot Size 0.625 in. (16 mm)
• Height above Floor (max.) 47.25 in. (1200 mm)
• Weight of Workpiece (max.) TBD
• Spindle (2J Head):
• AC Power Rating:
• - (continuous) 1 hp (1.2 kW)
• Spindle Taper R-8
• Tooling R-8 Collets
• Speed Range:
• High (infinitely variable) 660 – 2720 rpm
• Low 80 – 325 rpm
• Power Quill Feed 0.0015 in./rev (0.038 mm)
• Manual Adjust:
• - 0.003 in./rev (0.076 mm)
• - 0.006 in./rev (0.152 mm)
• Drilling Capacity:
• Power Quill Feed 3/4 in. (19 mm)
• Milling Capacity (mild steel) 3/4 in. (19 mm)
• Boring Range (mild steel) 6 in. dia. (152 mm)
• Spindle Diameter 1.875 in. (48 mm)
• Quill Diameter 3.375 in. (86 mm)
• Positioning:
• Auto (X, Y) 100 ipm (2540 mm/min)
• Manual (X, Y) 100 ipm (2540 mm/min)
• Feedrate Range (X, Y) 0.1 – 35 ipm (2 – 889 mm/min)
• Minimum Increment 0.0001 in. (0.003 mm)
• Space and Weight:
• Floor Area:
• - 8.3 x 5.3 ft. (2.53 x 1.62 m)
• - 8.3 x 7.8 ft. (2.53 x 2.4 m)**
• Height 7.04 ft. (2.15 m)
• Net Weight 1930 lb (875 kg)
• Shipping Weight 2075 lb (941 kg)
• PTWS # LR-0000-070321LR-G

Pic# 031822

WSPT# 00000-111422-L-A

* All information deemed accurate but may vary from model to model.

Contact Larry for any questions you may have.

Contact us at Four Zero One - Nine Six Five - Five Five Five Seven or Contact us through ebay

L R Associates, Inc.

Rhode Island, USA
