Barrett Centrifuge Oil Clarifier Cleans Fluid From Process Equipment without Filters! Recycle Oil

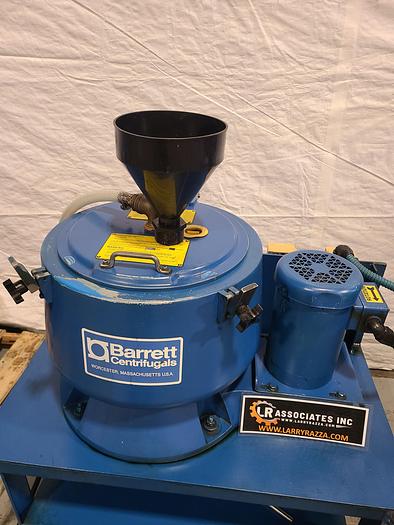

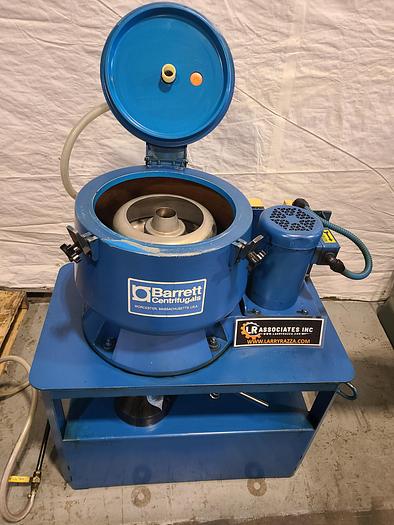

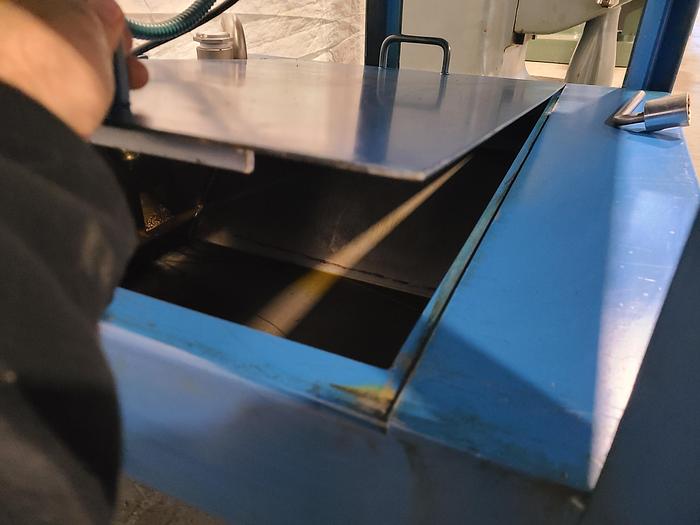

This is a Barrett #225 F Clarifuge Oil/ Fluid Cleaning System with catch tank and pump... Tested and Runs Excellent!

RECYCLE EXPENSIVE OIL... without filters!!!

Separates & Remove solid contaminant down to a sub-micron size from the oil, improved purity of the oil, extended oil life change period, Improve the quality of products significantly. Used for fluids/oils purifying in machining industry, EDM industry, grinding industry, etc.

BARRETT CLARIFUGE - FLUID CLEANING UNIT

1,000 Gs= SUPERIOR SOLID-FLUID SEPARATION

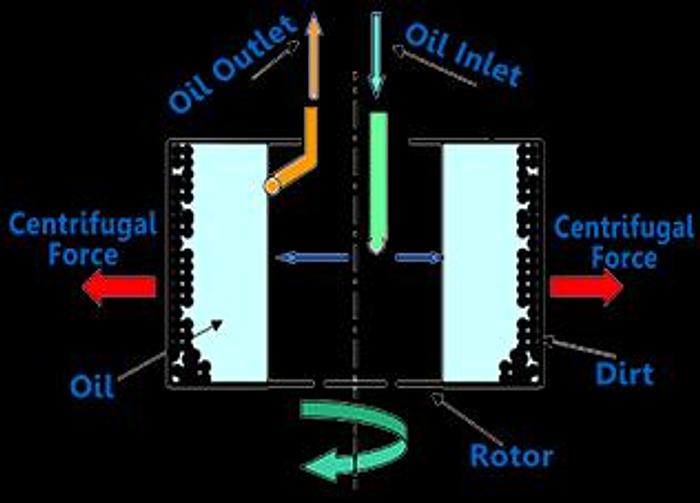

•   Centrifugal particle separation without bags or filters

•   Fluid flow rate from 3 to 15 gallons per min.

•   Separable solid particle to 5 microns

•   Separated solids collected capacity 40 to 50 lbs.

•   Removes abrasives, machining swarf and fine chips

•   Clarifies wire EDM, quench, & wire drawing fluids

•   Cleans fluid from process equipment sump

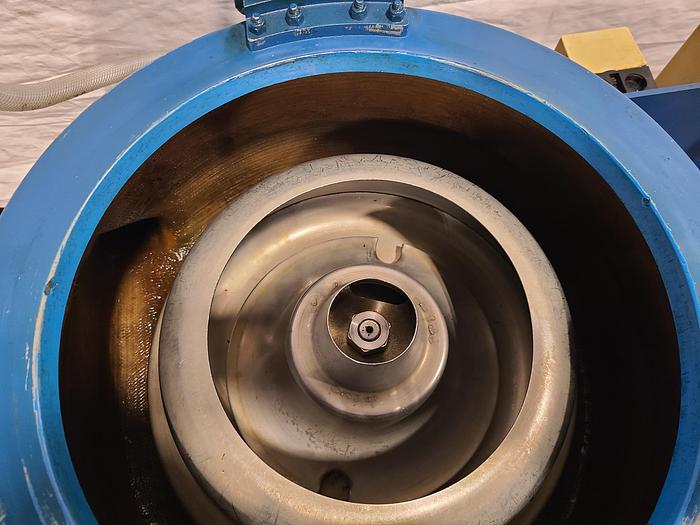

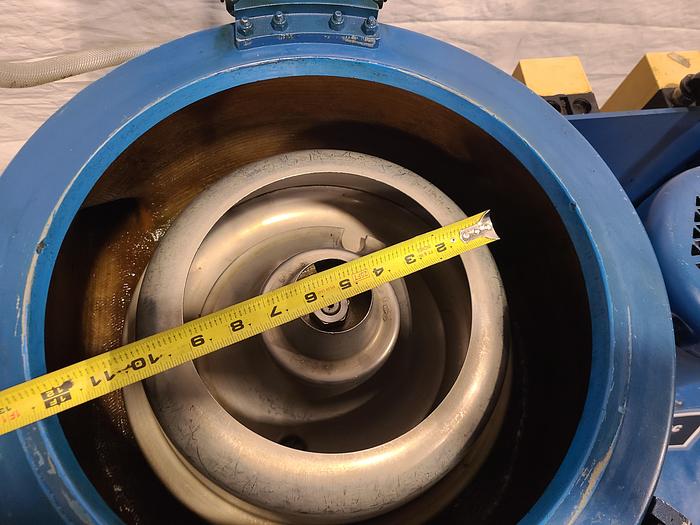

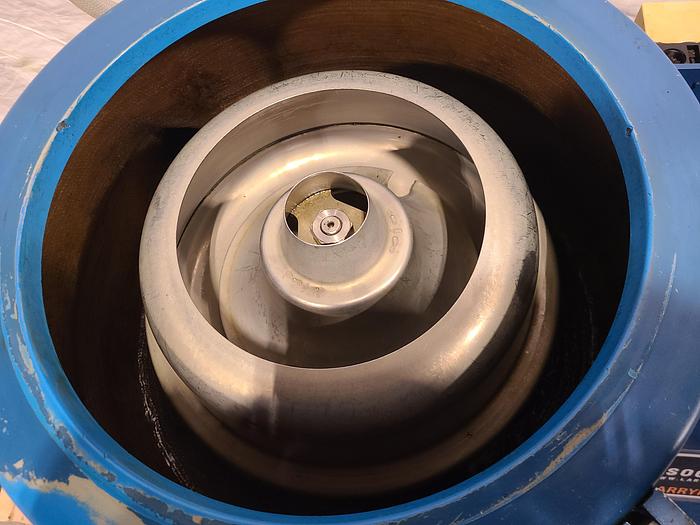

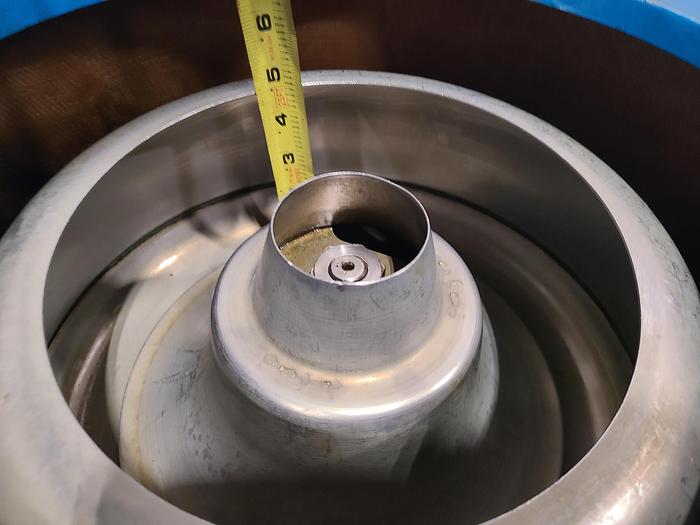

•   Easy bowl cleaning by Clari-Clean bowl cleaning unit

•   Compact design Including a safety lid lock

•   Rugged ball bearing spindle, simple reliable belt drive

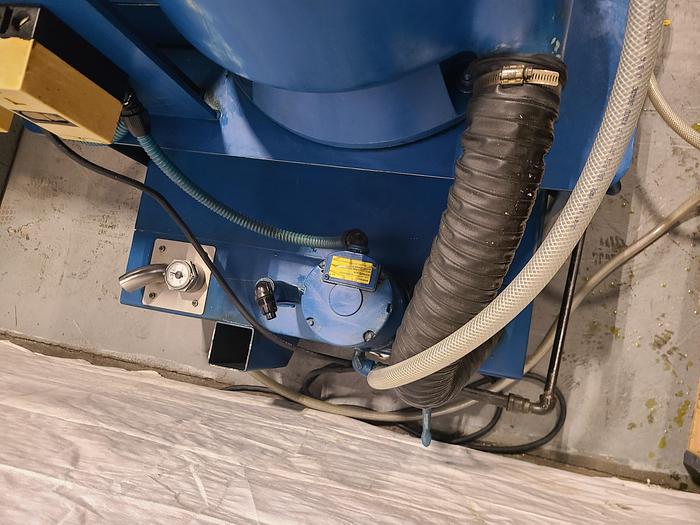

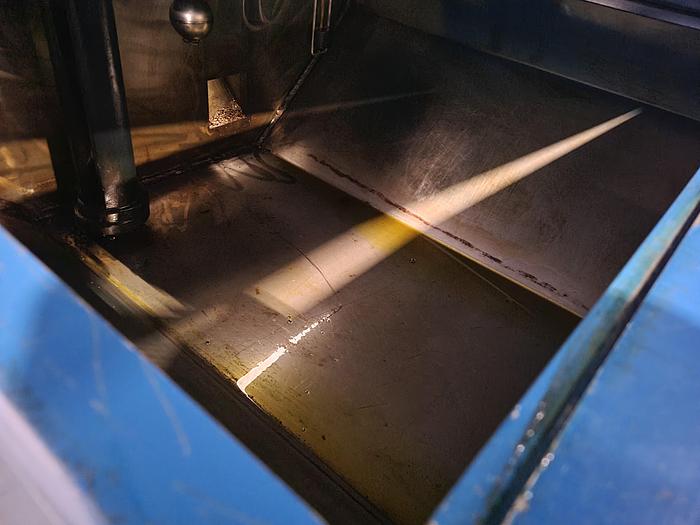

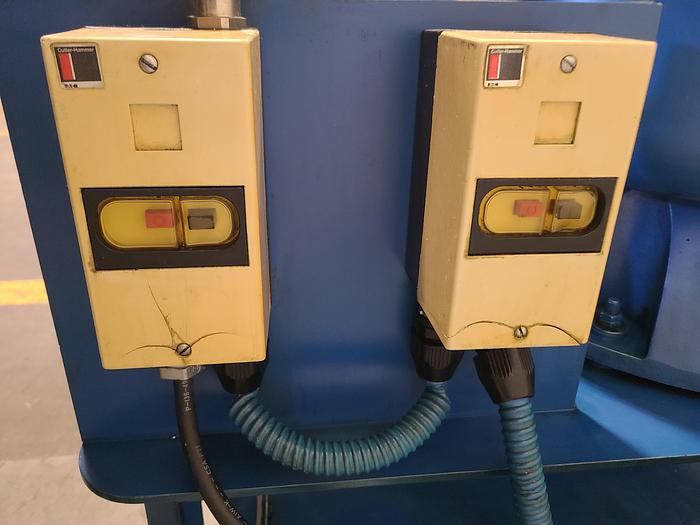

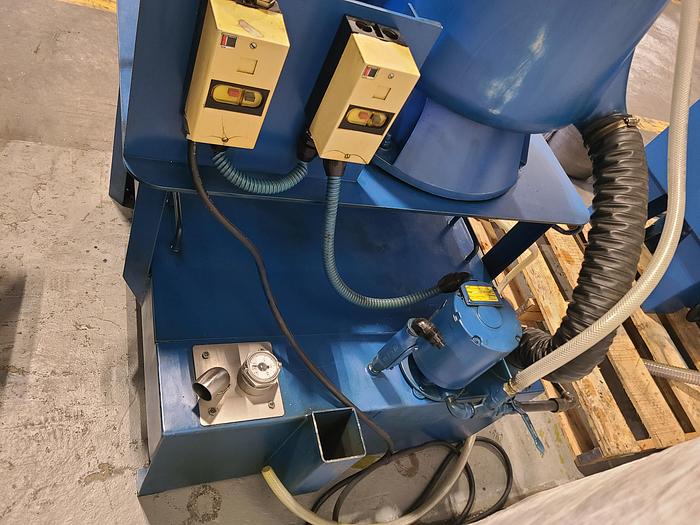

This portable turnkey system includes a Clarifuge, feed pump, catch tank, starter switches and disconnect and is an efficient alterative to costly central filtration systems.

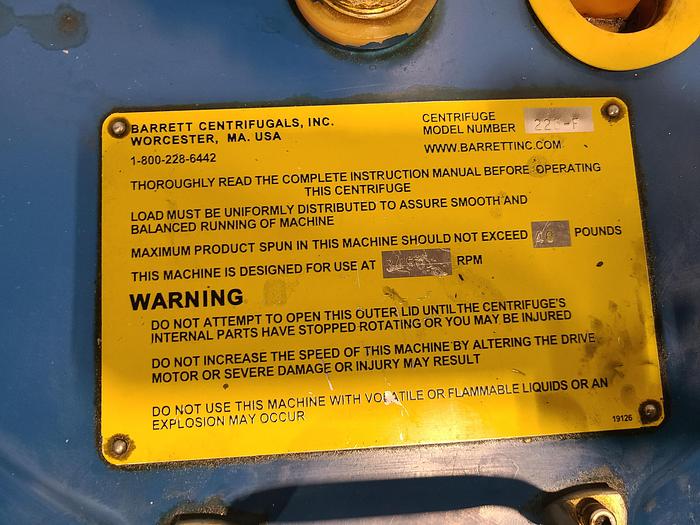

• Barrett Fluid Clarifier
• Model 225-F

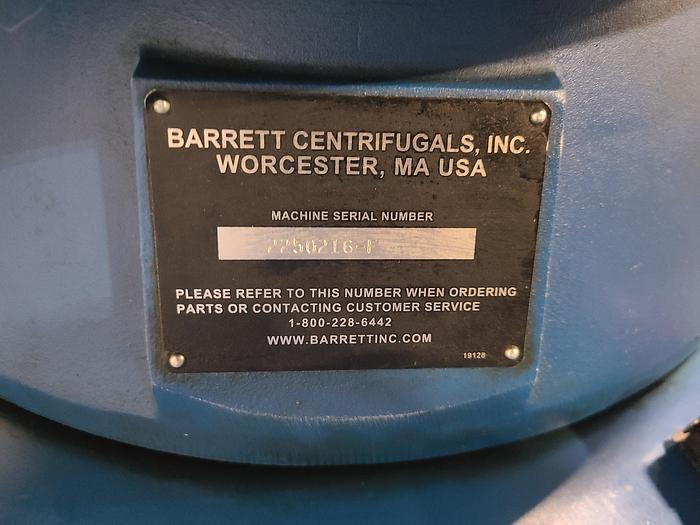

• Serial # 2250216-F
• 40 Lb. Collected Load Capacity

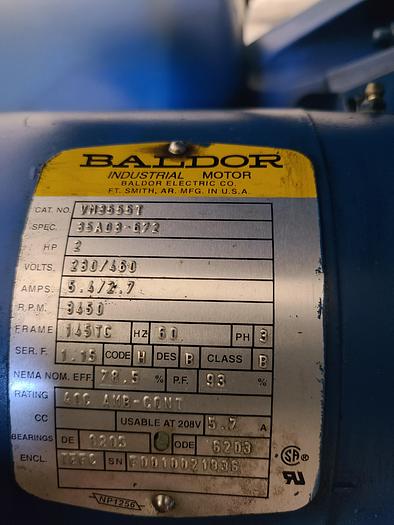

• Baldor Industrial Motor:
• 2 Hp
• 60 Hz

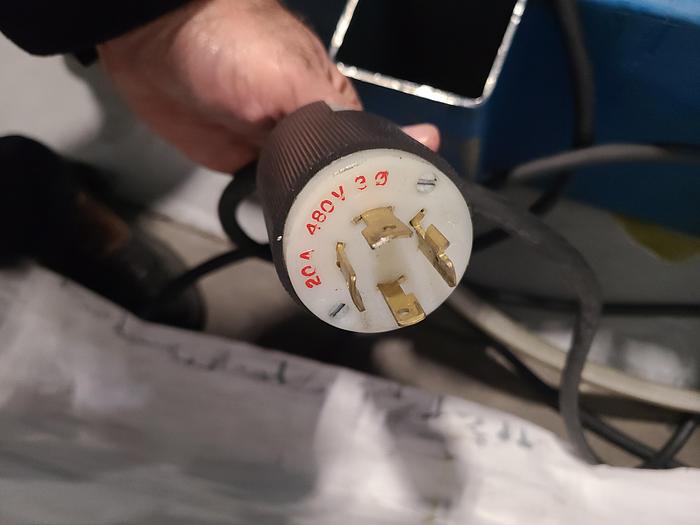

• 230/460 Volts
• 5.4/2.7 Amps
• Three Phase
• 3450 RPM

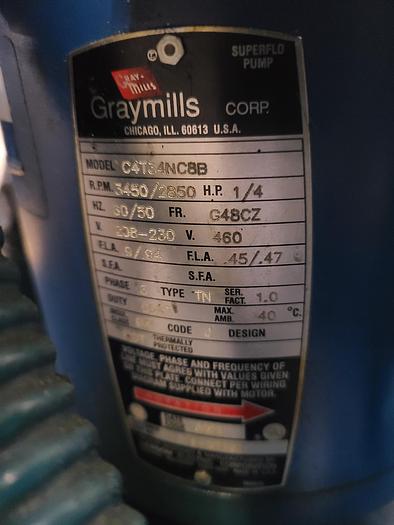

• Superflo Pump:
• 3450/2850 RPM
• 1/4 Hp
• 60/50 Hz
• 208/230/460 Volts

PTWS - 11012022-LR-13

Picture# 10192022

* All information deemed accurate but may vary from model to model.
