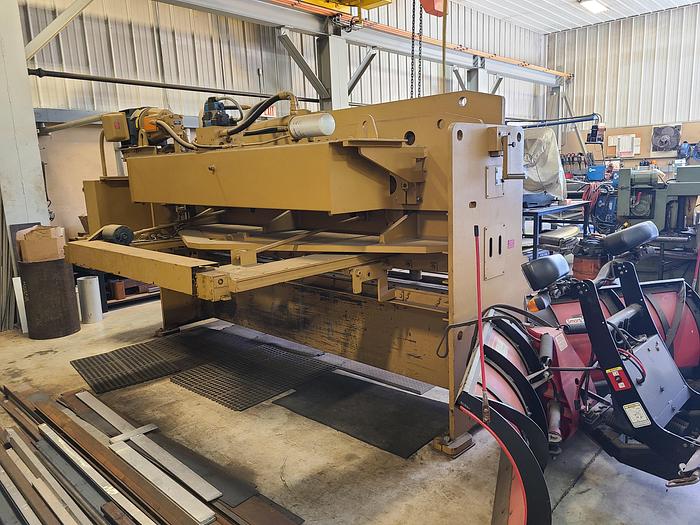

Standard Model CS375-10 Metal Shear New 2006 with Back Gauge

This is a Stand Metal Shear with Back Gauge with very little use... tested and running excellent!

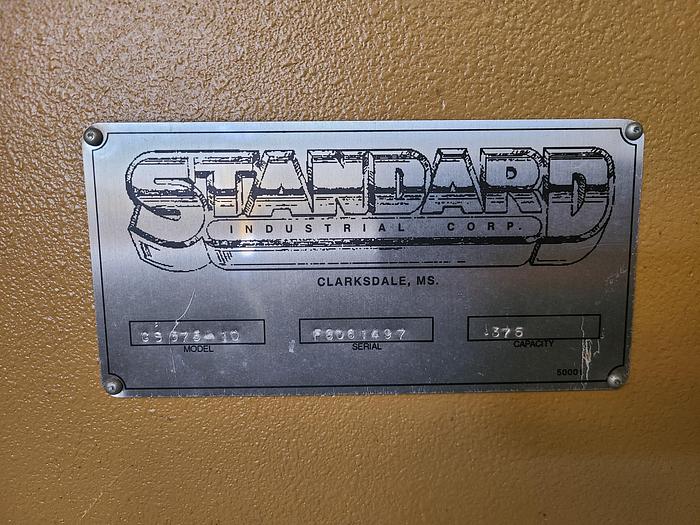

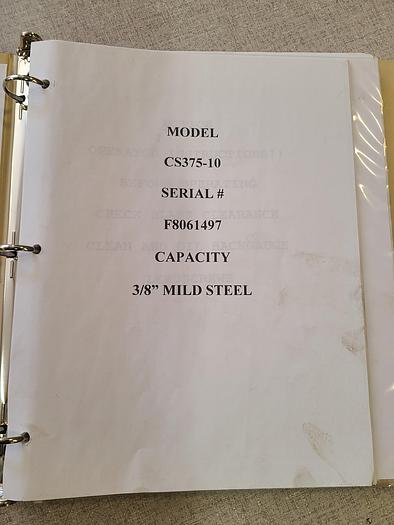

• Model #CS375-10
• Serial #F8061497
• .375 Capacity

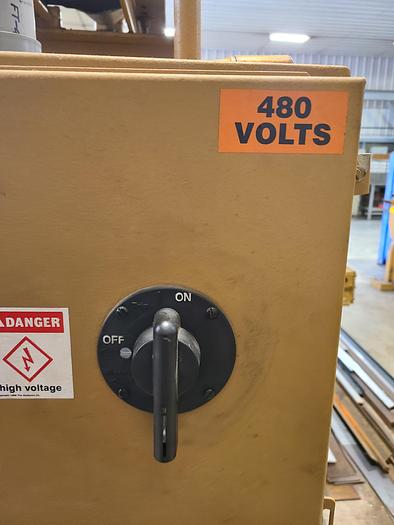

• 480 Volts
• Mfg date: 2006

Features Include...

All Components Readily Available From Your Local Suppliers

Precision Guillotine Drive Providing the Best Shearing System Available

36" travel PLC backgauge w/Go-To function & multi-job programming

Infinitely Variable, Manual, Quick-Change Blade Gap Adjustment

80,000 PSI Capacity rated

Manual Swing-Away Backstop

5 Year Parts Warranty

5 Year limited onsite labor warranty

Lifetime telephone support at no charge

4' squaring arm with scale

(2) Hand slots in the table

(2) T-slots in shear table

Specifications · Standard Features

Capacity to Mild Steel/A36    ….3/8" x 10'

Capacity to Stainless Steel …..1/4" x 10'

Shearing Tons….. 60

# of Hold Downs…. 11

Bore of Hold Downs…. 2 in

Hold Down Force… 41 Tons

Weight… 21,000 lbs

Back-gauge Travel… 36 in

Standard Features

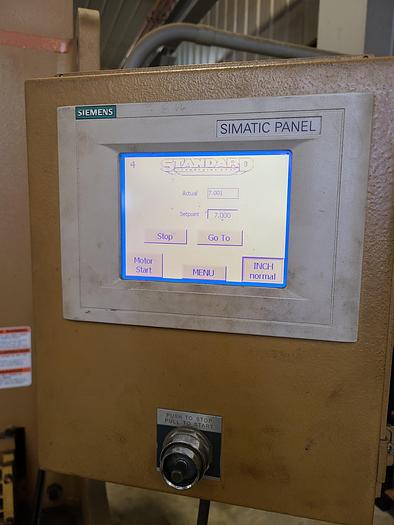

PLC Touch Screen Control

Simple Go-To function

50 job programmability with 5 cut lengths per job

Automatic actuation of backstop during program

5 programmable cut lengths per job

Stack your jobs up to any number of strokes

Inch/Metric conversion and Stroke Counter

Programmable X (backstop) retract

Manual and programmable functions

Swiveling pendant mount for easy operation

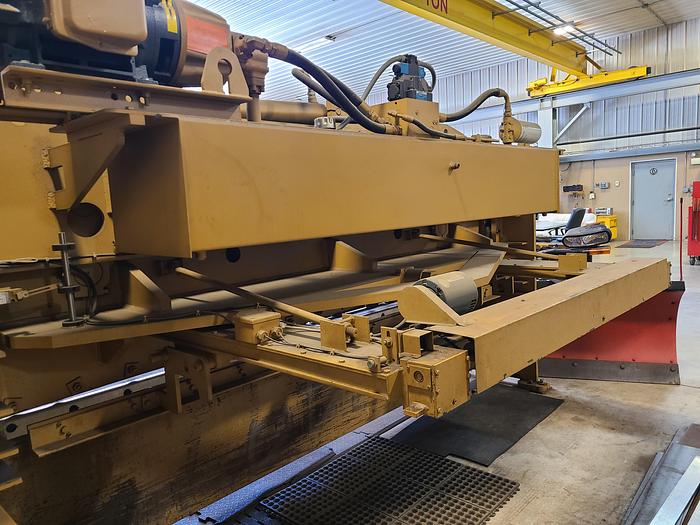

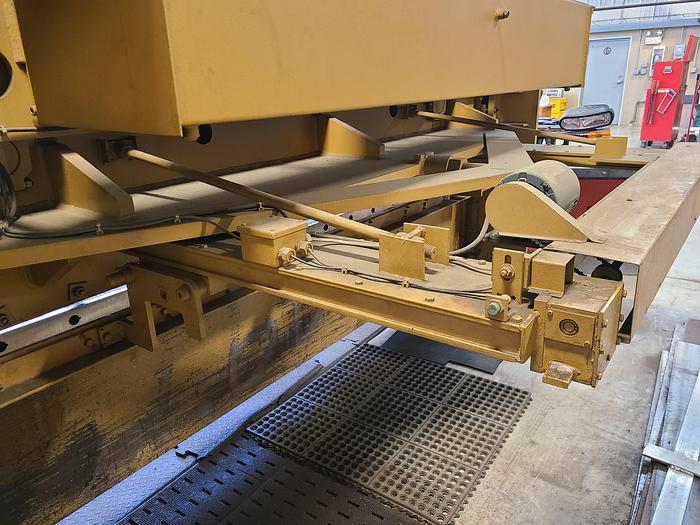

36" Travel EXTREMELY Heavy Duty Backgauge

No other backgauge comes close to the rigidity coupled with the brute strength of the Standard Industrial shear backgauge. Perfectly built for precision and outright ability to take abuse.

Equipped with a manual easy swingaway backstop

Available with optional power swingaway backstop

Clear area under backgauge for support equipment

± 0.005" backstop repeatability

Complete O.S.H.A. compliance

The absolute heaviest backgauge on the market


Infinitely Variable, Quick-Change Blade Gap Adjustment

All Standard shears come equipped with our positive drive, mechanical, quick-change blade gap adjustment. The AS250-6 up through the AS375-12 models are equipped with our Infinitely Variable side adjustable manual system.

The 14' and longer and all 1/2" and larger shears are equipped with the Infinitely Variable front operated Power blade gap system. Uniform and precision movement along machined tapered gibbs allows you to zero in on an exact precision cut.

On each end of the shear ram is our Extremely Heavy-Duty Gibbing system. This positive mechanical system provides a smooth, uniform gap adjustment via precision machined tapered gibbs. Each gibb plate (#1) slides opposite of each other on oil impregnated nylon called Nylatron (#2). This Nylatron insures no excessive heat or friction is built up. These gibbs also control the front to back and left to right forces of the ram travel delivering the most precision cut available on any shear.


Fully Loaded, Extremely Heavy Duty Table

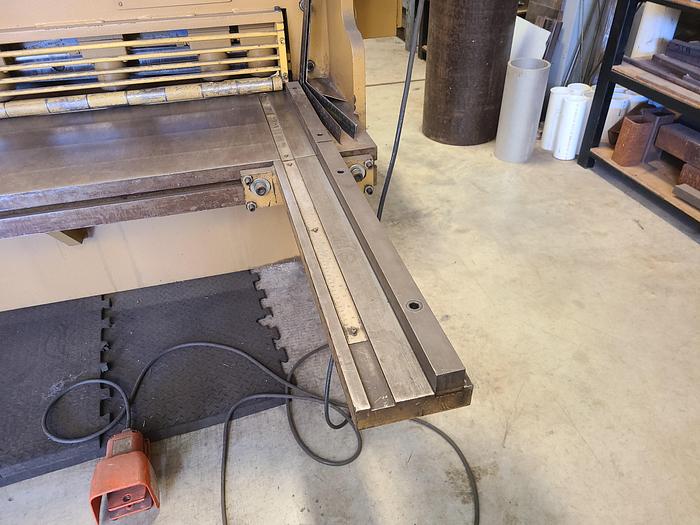

Each shear comes standard with an incredibly heavy duty , precision machined table. Each machine is equipped with multiple large hand slots for easy part handling. Plus t-slots for setting stops and front gauging. Also included is a 4' squaring arm (2' off table on right side) with a precision inlaid scale.

PTWS - 03262023-BIGWO-6

Picture# 03212023

* All information deemed accurate but may vary from model to model.
