Clifton 1000 Ton Hydraulic Press with Automatic Cycle & Large 31" Platens Coining Hydroforming

Sold

Clifton 1000 Ton Hydraulic Press with Automatic Cycle & Large 31" Platens Coining Hydroforming

$34,995 (USD)

Location:Central Falls, RI

Description

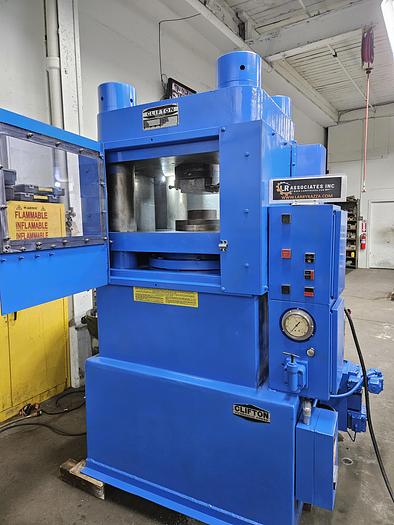

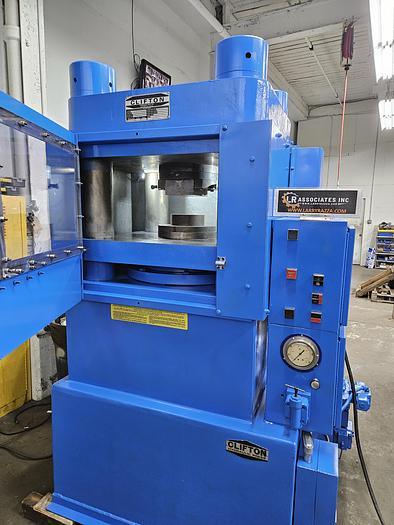

This is a Clifton 1000 Ton Hydraulic Press in Excellent Running Condition!

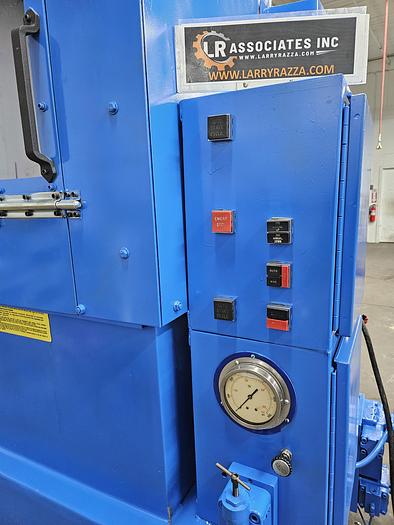

  • Double Palm Anti Tie Down Buttons
  • Automatic cycle... hold the two buttons in, the press cycles up and automatically returns down once set pressure is reached.
  • Also has manual up/down operation


Heavy Steel Jacketed Chamber with Lexan Window and safety switch / lock on door!

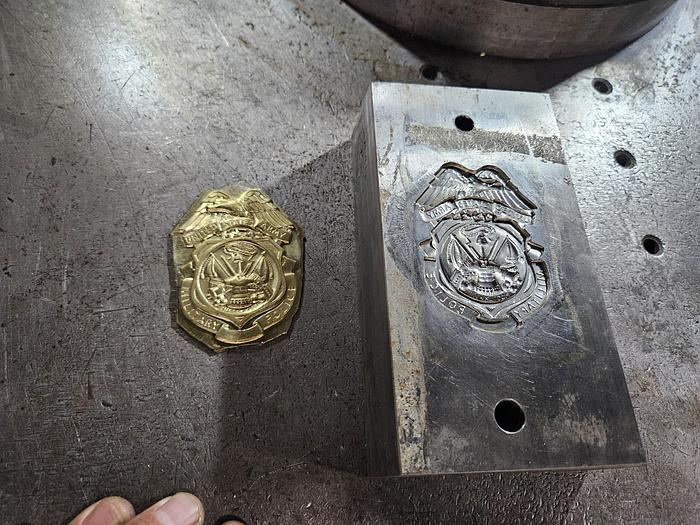

Hydroforming, Deep Drawn Metal Pans, Coining many uses!

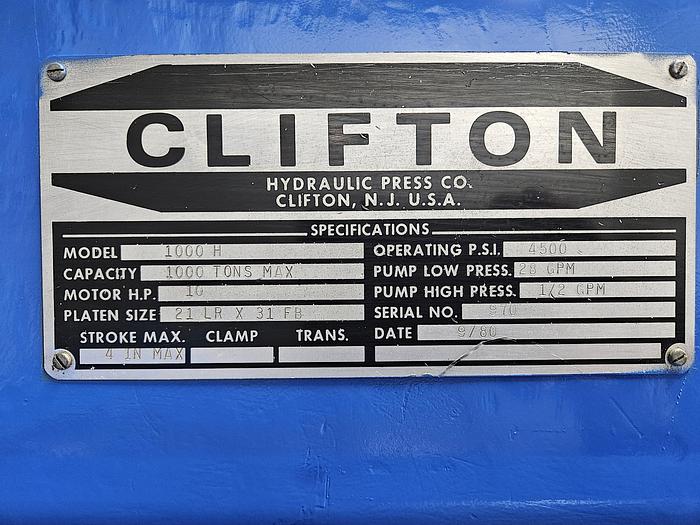

  • Clifton Brand
  • Model #1000 H
  • Double Palm Anti Tie Down Buttons
  • Automatic cycle for repetitive operations
  • Serial # 970
  • Type: Hydraulic

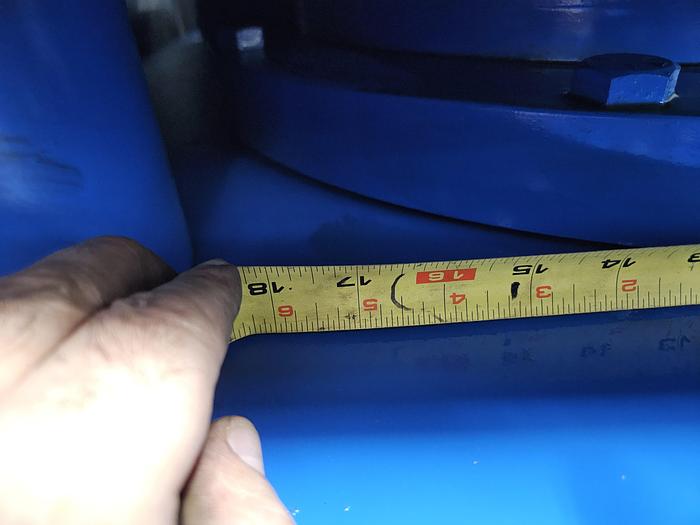

  • 18" Hydraulic Cylinder
  • Capacity: 1000 Ton
  • Max Stroke: 4 Inches
  • Operating Press: 4500 PSI
  • Pump Low Pressure: 28 GPM
  • Pump High Pressure: 1/2 GPM

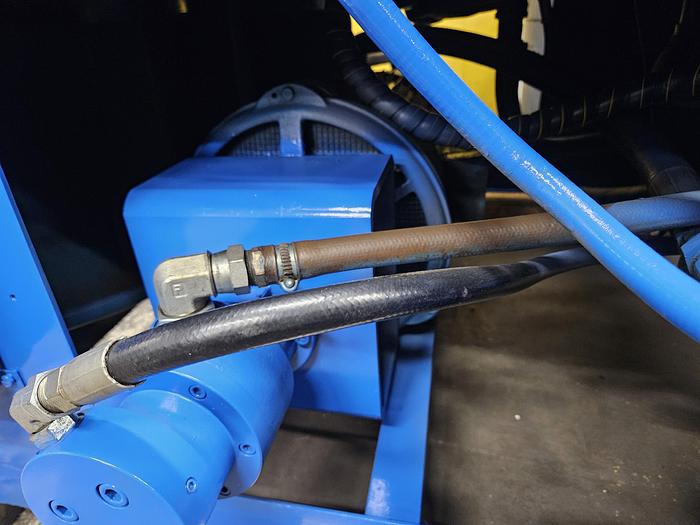

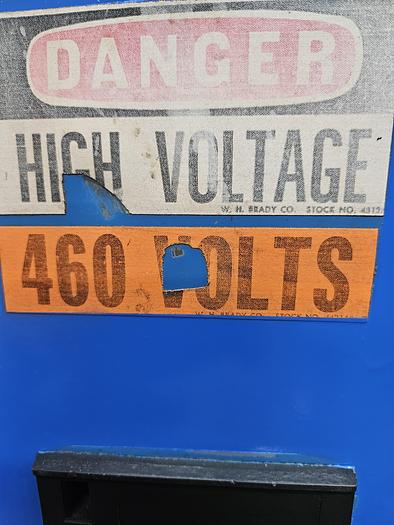

  • 460V 3 Phase Hydraulic Motor

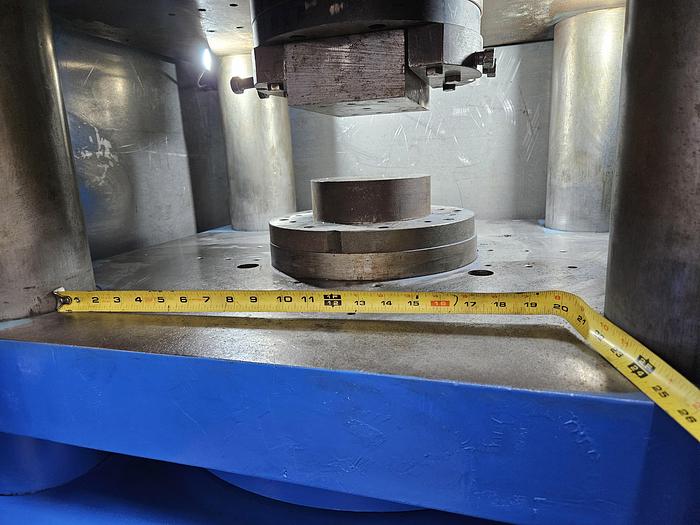

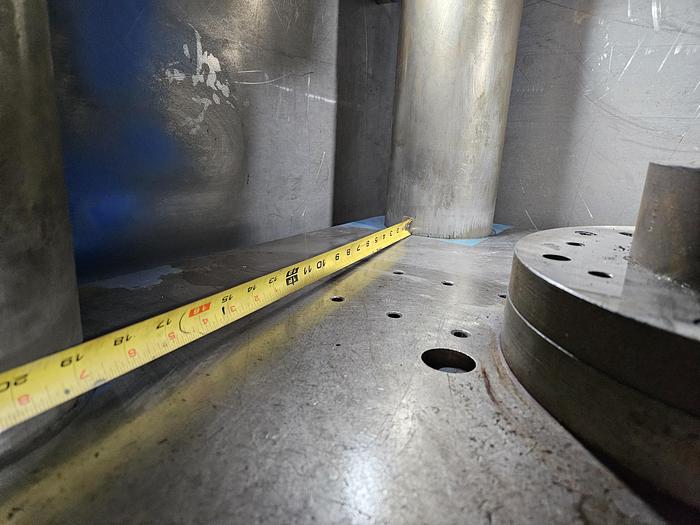

  • 21" between Tie Bars

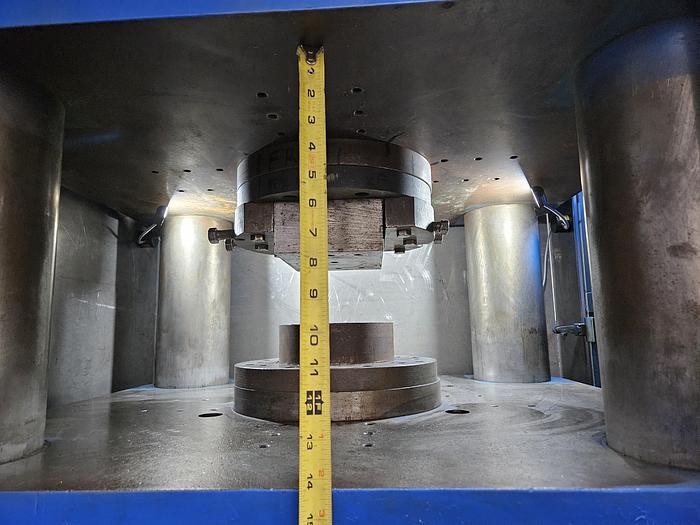

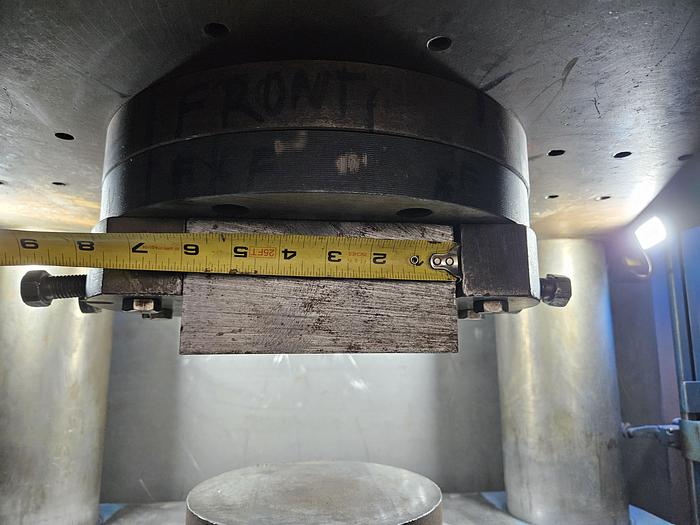

  • 14" die height

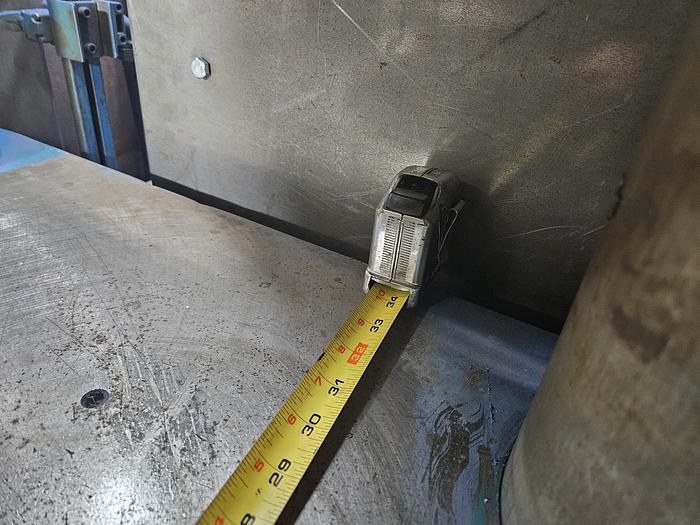

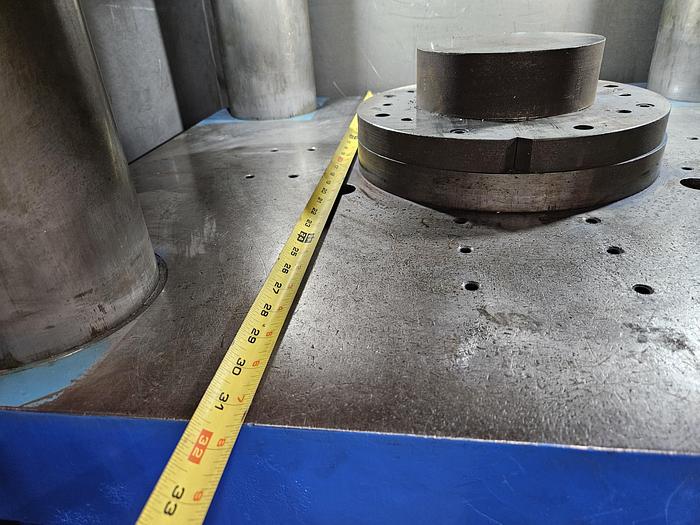

  • 31" x 31" Platen size
  • LED Lights in work area
  • Weight Approx. 20,000 Lbs.
  • Made In USA


PTWS -0000-12102023-A

R072924


Picture# 12062023


* All information deemed accurate but may vary from model to model.


Contact Larry for any questions please call Four Zero One - Nine Six Five - Five Five Five Seven

___________________________________________________


Equipment Financing Available, please contact us!


Fast Application, it’s all filled in for you...


Online leasing applications (get LOW monthly payments)


* Please Note: Not all machines may qualify for Leasing.


Payments: We accept all Major Credit Cards, Bank Wires, Company and Personal Checks.


SHIPPING: Contact us for great rates on shipping...


We always get better rates...


Please email us for a rigging and shipping quote; just include the zip code when inquiring and if you have a loading dock or ground level with forklift. Thank you!


Contact us at Four Zero One - Nine Six Five - Five Five Five Seven


We also ship worldwide.


CONDITIONS: All quotations are for immediate acceptance. They are subject to withdrawal, change and prior sale without notice. Shipping dates are only approximate and contingent upon delays beyond our control. All orders received are binding only when they have been accepted and acknowledged by us in writing. Provisions in customer’s purchase orders contrary to these conditions shall not be binding upon us unless accepted in writing. Unless otherwise specified, prices quoted are F.O.B. shipping point, exclusive of State, County and Federal taxes which must be added where applicable. Insurance on shipment must be requested by email, there will be an additional charge for shipping insurance. Shipping destination must be available to receive the shipment… any costs incurred on delays due to the buyers’ destination being unable to receive the shipment and/or additional services required, will be the responsibility of the buyer. Care is taken to give reliable specifications, but these are not guaranteed. We reserve the right to correct typographical errors. All used equipment is sold "as is".



INDEMNIFICATION: Used Machines may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It is the user's responsibility that the said machines be so equipped and safeguarded to meet OSHA and any other requirements before placing such machinery into operation. User agrees to indemnify and hold Seller harmless of and from any and all claims or liabilities from accidents involving these machines caused by failure of user, his employees, or agent to follow instructions, warnings, or recommendations furnished by manufacturer, or Seller, or by failure of user to comply with Federal, State and Local laws applicable to such equipment including the Occupational Safety and Health Act of 1970. User shall notify Seller promptly after occurrence of any accident involving these machines and shall cooperate fully with Seller. or Seller's agent in investigating and determining the cause of said accident.




Specifications

ManufacturerClifton
Model1000 H
ConditionRefurbished
Stock Number12102023-A
