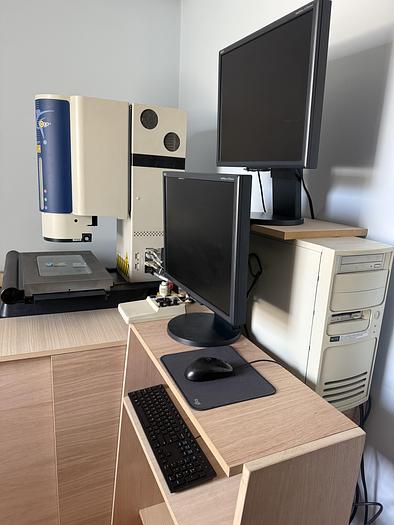

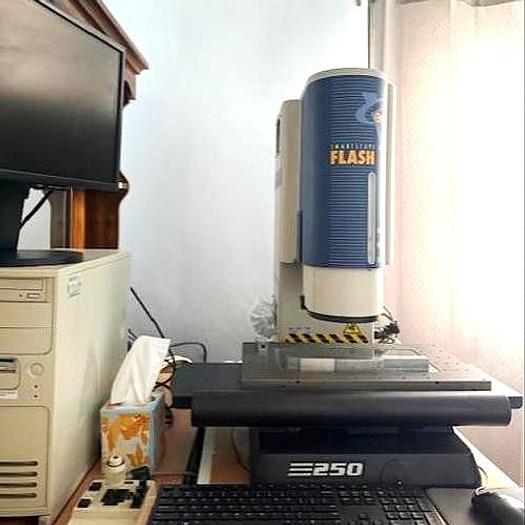

Flash 250 Measure Mind 3D OGP smart Scope CMM Coordinate Measuring Machine Calibrated!

This is a SmartScope® Flash™ 250 from OGP® Tested and Running Excellent!

SmartScope® Flash™ 250 from OGP®

supports a variety of multisensor options, including touch probes,

micro-probes, and through-the-lens (TTL) or off-axis laser sensors.

Our patented 12:1 AccuCentric® zoom lens calibrates itself automatically after every

magnification change for highest accuracy throughout its entire range,over the life of

the system.

Rugged benchtop machine with 300 mm of X axis travel in a compact package —

provides measurements of large parts while maintaining a small system footprint,so it

can be used virtually anywhere.

Exclusive OGP illumination technology provides the programmable power you need to

image the most challenging parts — including prismatic or cylindrical parts. Green LED

profile and white TTL coaxial illuminators — even our patented programmable

SmartRing™ LED illuminator — are all standard with SmartScope Flash 250.

offers great value,high precision, and superb optics

mounted on a space-saving benchtop platform. In addition to its accurate video metrology

capability, Flash 250 also

Field proven OGP full field-of-view image processing and advanced Z-axis autofocus

deliver high precision non-contact measurement.

OGP Measure-X® metrology software uses point-and-click tools to simplify complex

measurements, and provides a versatile measurement package for general use.

SmartScope Flash 250 is also available with MeasureMind® 3D MultiSensor,for full 3D

functionality.

Travel mm in

Flash 250

X axis... 300mm... 12"

Y axis ...150mm... 6"

Z axis ...200mm... 8"

Software: For use with Measure-X or MeasureMind 3D; MeasureFit® Plus, SmartReport® powered by QC-Calc, SmartFeature®,QC-Calc™,TrueMap™

Software: For use with MeasureMind 3D only; SmartCAD® 3D, SmartFit® 3D, SmartProfile™, SmartScript®, I ++ DME, SmartTree™

XY area accuracy: E2=(2.5 + 5L/1000) µm*

*With evenly distributed 5 kg load in the standard measuring plane. Depending on load distribution, accuracy at maximum rated load may be less than standard accuracy. XY axis artifact: QVI 25

intersection grid reticle in the standard measuring plane. The standard measuring plane is defined as a plane that is 25 mm above the worktable.

**Z axis artifact: QVI step gage or master gage blocks.

(XYZ): 300 x 150 x 200 mm (12 x 6 x 8”)

Measuring unit dimensions (approx LWH): 74 x 64 x 81 cm,115 kg

XYZ scale resolution: 0.5 µm

0.1 µm

Motor drives: DC servo with joystick control (X,Y,Z, zoom)

Interactive stage control: 4-axis (X,Y,Z,zoom) with ergonomic,multifunction hand controller (requires MeasureMind 3D metrology software)

Worktable: Hardcoat anodized with fixture holes and removable stage glass,25 kg load capacity

† Zoom lens: Patented 12:1 AccuCentric® auto-calibrating with up to 25 calibrated positions

Optical accessories: 0.5x,1.5x, and 2.0x lens attachments; 2.5x and 5.0x replacement lenses; LED grid projector, laser pointer (not available with TTL laser)

Camera: ½”format high resolution color CCD with 768 x 494 pixel array †

Illumination: Green LED substage,white LED coaxial TTL surface,patented 8 sector/8 ring SmartRing™ LED

Image processing: 256 level grayscale processing with 10:1 sub-pixel resolution

Multisensor options: Touch probe and change rack, Feather Probe,™ Rainbow Probe™ scanning white light sensor, on-axis TTL laser,

off-axis DRS™ laser (contact OGP for possible combinations of sensors)

Power requirements: 115/230 vac,50/60 Hz,1 ,700 W

Rated environment: Temperature between 18 and 22° C,stable to ± 1° C; 30-80% humidity (non-condensing); vibration <0.001g below 15 Hz

Operating environment: 15-30° C

Metrology software: Measure-X®

MeasureMind® 3D MultiSensor

Computer: Minimum configuration Dual Core processor @ 1.8 GHz,1 GB RAM,80 GB hard drive,1.44 MB floppy drive,DVD-RW drive,

parallel,serial, and USB 2.0 ports,on board 10/100 LAN

Operating system: Microsoft® Windows™ XP Professional

Computer accessory package: Single 22”or 24”flat panel LCD monitor,or dual 22”flat panel LCD monitors; keyboard,mouse (or user supplied)

Z linear accuracy: E1=(3.0 + 5L/1000) µm**

Z linear accuracy: E =(2.0 + 5L/1000) µm** (with optional 2.0x lens attachment/grid projector,on-axis TTL laser w/5.0x replacement lens, 1

or off-axis DRS-2000 laser)

Z linear accuracy: E =(1.5 + 5L/1000) µm** (with optional TP-20/-200 touch probe,or off-axis DRS-300/-500 laser)

WSPT# LRQ-0000-040625-G

Picture# File

* All information deemed accurate but may vary from model to model.
