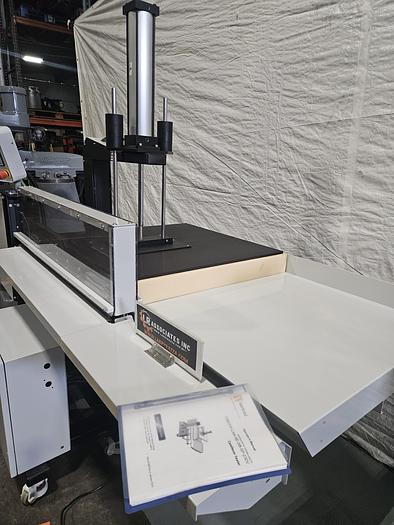

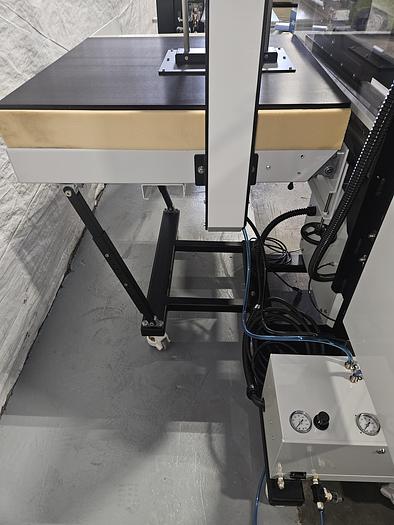

2023 Vertrod 36" PAC Machine Cantilever Frame Thermal Impulse Heat Sealer MEDV36EP/P-CAN-AE-3/8_SP-230v

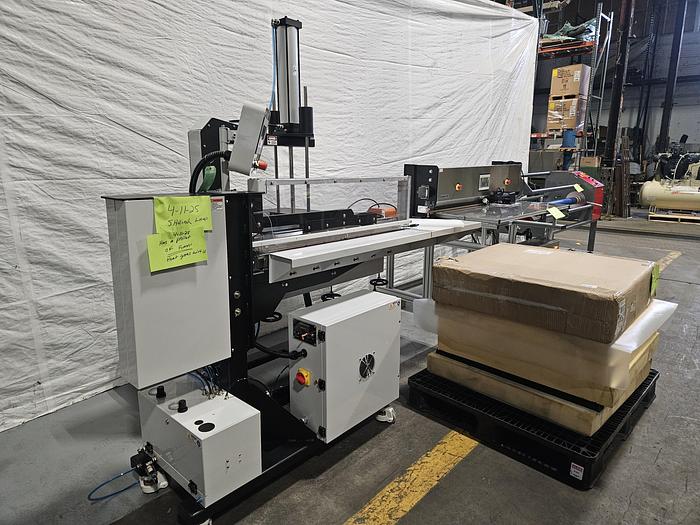

This is a Vertrod 36" Cantilever Frame Thermal Impulse Heat Sealer with air expeller compresses the product while forcing air out of the package, just prior to the sealing cycle... Tested and Running Excellent!

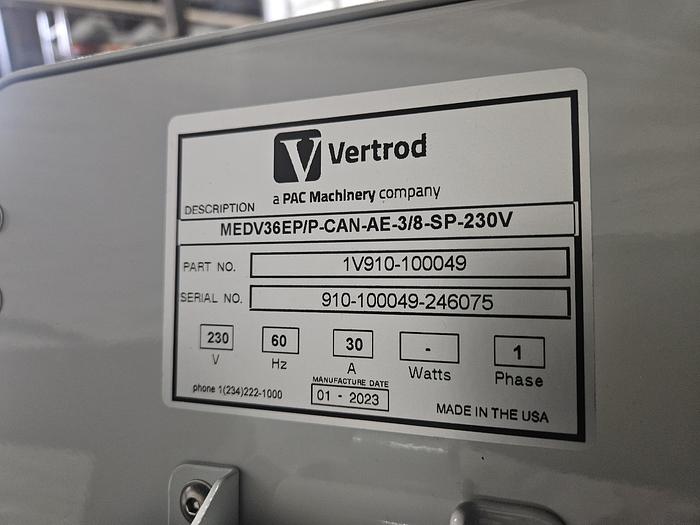

Model # MEDV36EP/P-CAN-AE-3/8_SP-230v

220V single phase

30 Amp

Mfg date 2023

Comes with foam tooling

Industries

Food, Industrial, Medical, Fruits, Nuts, Vegetables, Meat, Cheese, Poultry, Fish, Pet, Automotive Parts, Fabric and Textile, Pharmaceutical, Medical Devices, Healthcare Item, Chemical, Hazardous Location, Toy and Game, Printing, Paper, Forms, Electronics

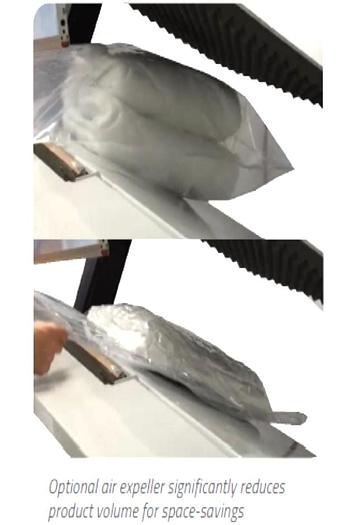

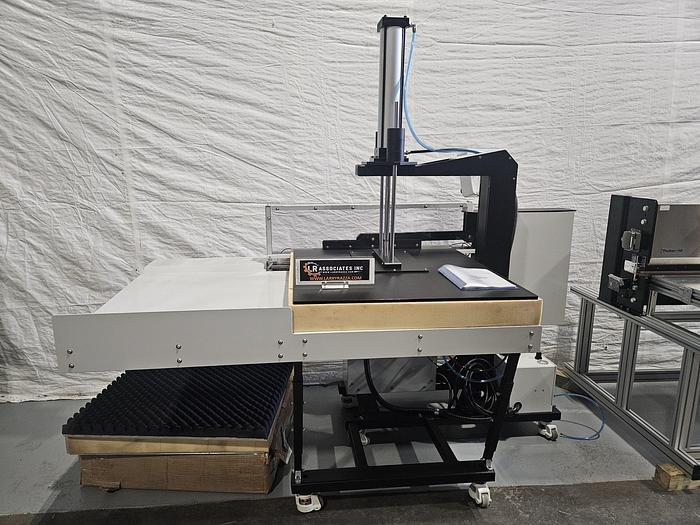

The Vertrod P-CAN pneumatic cantilever sealer is an industrial grade thermal impulse heat sealer for applications that require unobstructed access to the sealing jaws. Typical applications are sealing across tubing, lap sealing a sleeve or “dead-end” assembly, splicing thin belts, sealing filling valves on free standing bags (pouches) and closing bulky packages. With the optional air expeller, product volume can be reduced by means of compression. The air expeller compresses the product while forcing air out of the package, just prior to the sealing cycle. This method is faster than vacuum packaging to reduce product volume while also maintaining a consistent, uniform package shape. A Bagmaster bag opener used in conjunction with the optional extended product support table will allow a single operator to load product and run the compression / sealing cycle in a single step. Typical compression applications include packaging foam products, textiles, and other bulky flexible products.

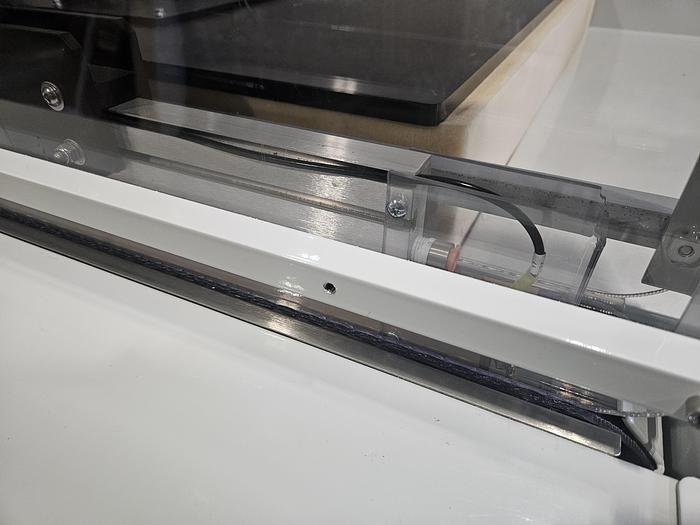

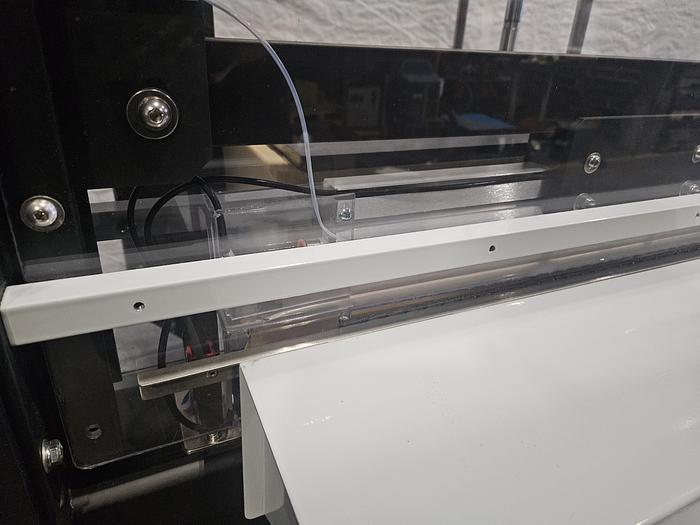

Sealing features ■ Seal length: 14″, 20″, 24″, 30″, or 36″ ■ Seal width: 1/4" standard (other widths optional) ■ Single side heater bar with opposing pressure bar (bottom jaw heated) ■ Time-based thermal impulse sealing system ■ High pressure sealing cylinder Construction features ■ Welded steel frame with powder coat finish ■ Adjustable height sealing head for thin or thick materials

Safety features ■ Pneumatic low-pressure jaw close safety system with release if obstruction is detected ■ Foot switch cycle activation ■ Lexan safety cover over sealing jaws (optional) Compression features (optional) ■ Pneumatic air expeller for product evacuation ■ 8” opening between compression plate and support table (larger openings optional) ■ Independent speed control for seal jaws and air expeller ■ Adjustable pressure setting for air expeller ■ Product support table with height and angle adjustment

WS # L-0000-041325-B

Picture - 041125

* All information deemed accurate but may vary from model to model.
